Every 50 Hours - Check Mounting Frame Hardware (5000, 5010 and 5015 Series Tractor)

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware every 50 hours.

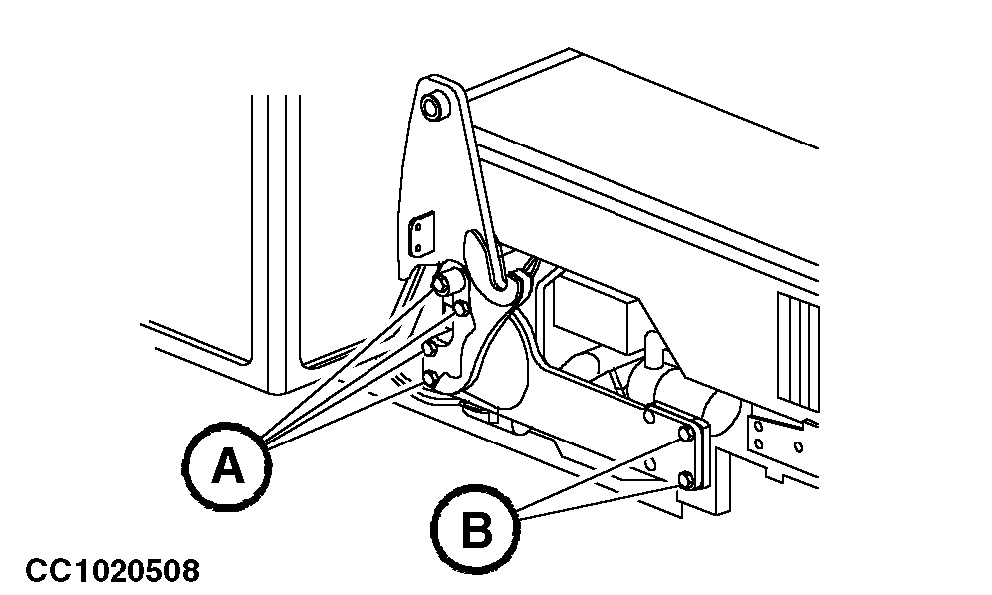

Tighten all M20 screws (A) on each frame to 540 N·m (400 lb-ft) torque.

Tighten all M16 screws (B) on each frame to 275 N·m (200 lb-ft) torque.

A-M20
B-M16

CC03745,000068D -19-27JUL04-1/1
