Adjusting Front Tread (7000 and 7010 Series Tractor)

Adjust distance from tire center to tire center (A) between a minimum of 1780 mm (70 in.) and a maximum of 2080 mm (82 in.).

Adjust tractor steering stop and fender positions so that no interference occurs when the front axle oscillates.

See your tractor operator's manual to make adjustments.

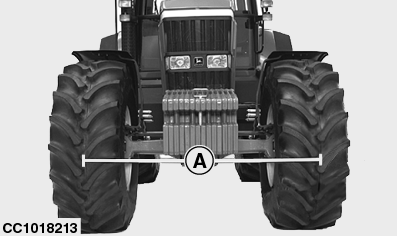

A-Tractor front tread

OUCC006,00003B7 -19-24APR01-1/1
