Every 50 Hours - Check Mounting Frame Hardware (7000 and 7010 Series Tractor)

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware every 50 hours.

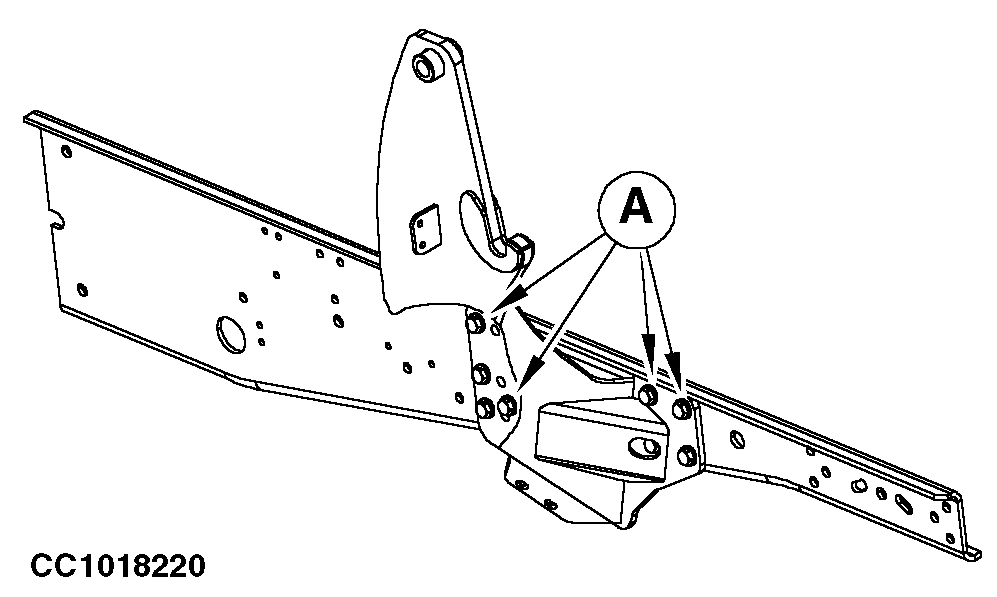

Tighten all M20 screws (A) on each frame to 620 N·m (460 lb-ft) torque.

A-M20

OUCC006,00003D1 -19-25APR01-1/1
