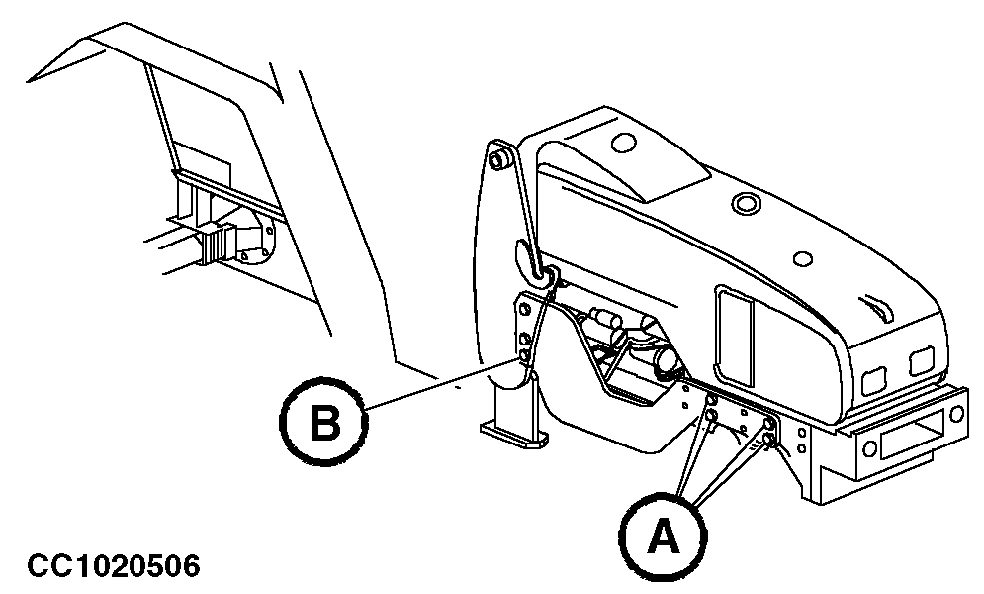

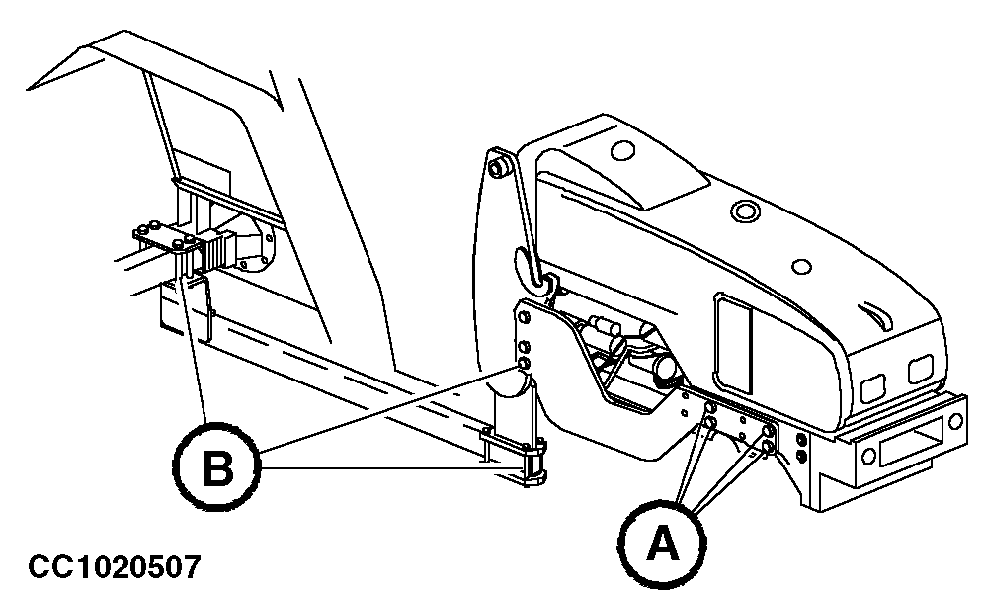

Every 50 Hours - Check Mounting Frame Hardware (3000 and 3010 Series Tractor)IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware every 50 hours. Tighten all M18 screws (A) on each frame to 475 N·m (350 lb-ft) torque. Tighten all M16 screws (B) on each frame to 275 N·m (200 lb-ft) torque.
|
|
OUCC006,00004FD -19-27SEP01-1/1 |
