Hydraulic Self-Levelling Deactivation
The HSL is activated when button (A) is not pressed. Press button (A) to deactivate the HSL. The HSL can be deactivated at low level to have a roll back effect while raising the loader. Release button (A) to reactivate the HSL when required.
|
|

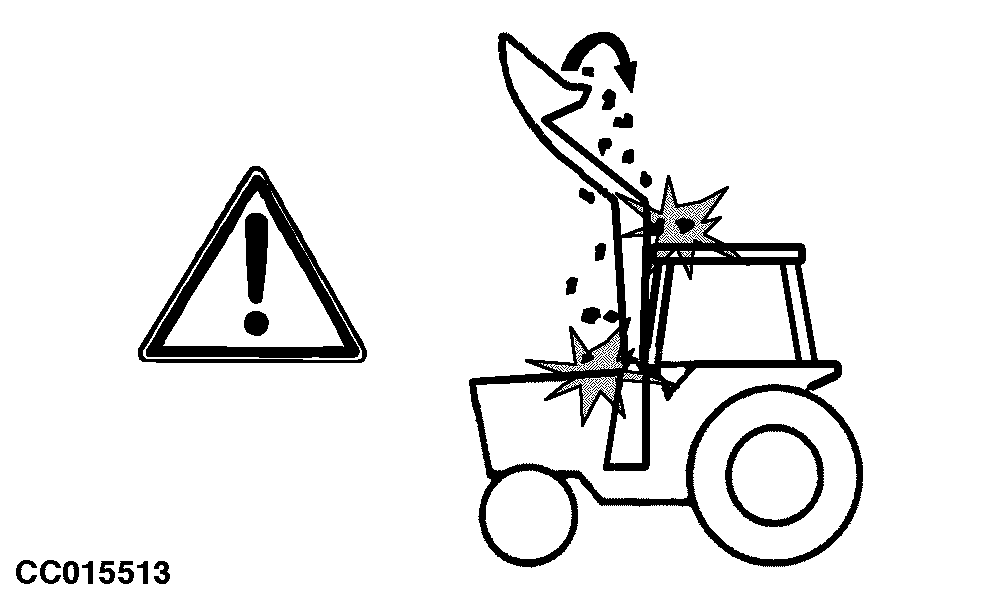

CAUTION:
To prevent personal injury by falling loads, do not deactivate the HSL when loader is raised.
OUCC006,00006FB -19-26JUN02-1/1 |
