Gear Shift Switches on the Multi-Function Lever (Tractor with POWRQUAD™ Plus and AutoQuad Transmission)

The gear shift switches allow to change gear in a range without taking the range shift lever.

IMPORTANT: If allowed by local traffic regulations, it is recommended to lock the multi-function lever when driving on public roads.

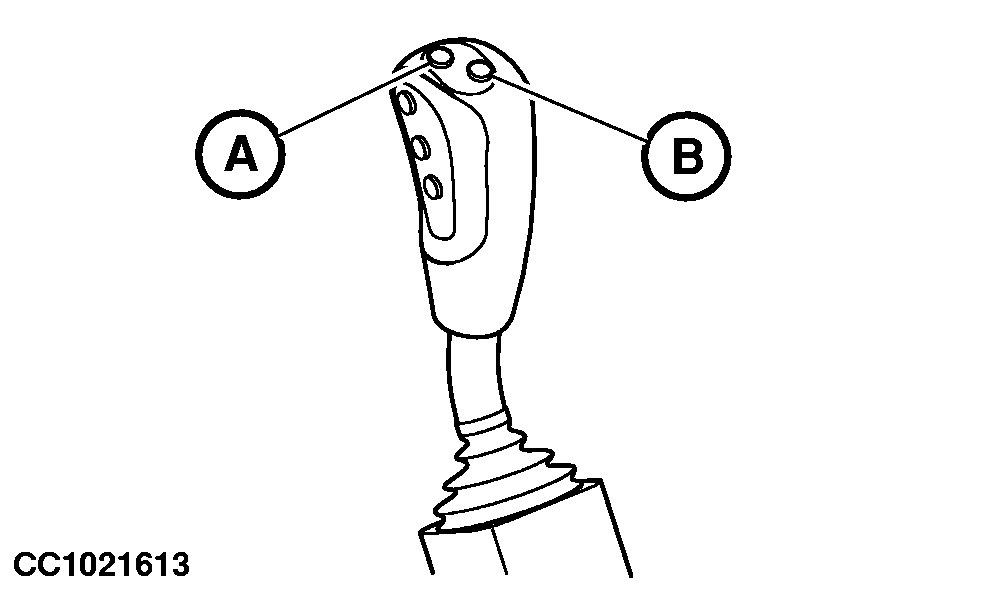

Press button (A) to shift up gear.

Press button (B) to shift down gear.

A-gear shift up
B-gear shift down

POWRQUAD is a trademark of Deere & Company

OUCC006,0000813 -19-07JAN03-1/1
