Operating 3rd, 4th and 5th Functions with 3-Function Independent Control Valve

CAUTION: To avoid unexpected movement, always select the desired function by pressing button (B), (C) or (D) before actuating the rocker switch (A).

NOTE: If loader does not respond as expected to rocker switch movement:

• Check for correct hose connections and electrical connections. See "Identifying Hose Connections" in "Service" Section.

• Check tractor hydraulic oil level. See your tractor operator's manual.

NOTE: 4th and 5th functions need the front-end implement to be fitted with the required diverter valves.

The multi-function lever is protected by a fuse.

Operating 3rd function

To select 3rd function, press and release the button (B), then press on top of rocker switch (A) to open the implement and on bottom of rocker switch (A) to close it.

Operating 4th function

To select 4th function, press and release the button (C), then press on top of rocker switch (A) to open the implement and on bottom of rocker switch (A) to close it.

Operating 5th function

To select 5th function, press and release the button (D), then press on top of rocker switch (A) to open the implement and on bottom of rocker switch (A) to close it.

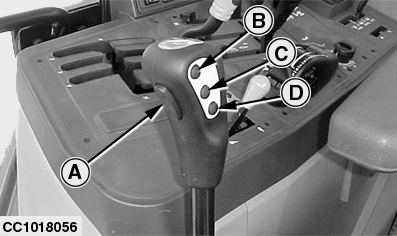

A-Rocker switch
B-3rd function
C-4th function
D-5th function
