Operating 3rd, 4th and 5th Functions with 2-Function Independent Control Valve and Diverter

causym CAUTION: As soon as the switches for 3rd, 4th or 5th function are released the control lever goes back to its primary functions: dump to the right-hand side and roll back to the left-hand side.

NOTE: If loader does not respond as expected to control lever movement:

  • Check for correct hose connections and electrical connections. See "Identifying Hose Connections" in "Service" Section.

  • Check tractor hydraulic oil level. See your tractor operator's manual.

NOTE: 4th and 5th functions need the front-end implement to be fitted with the required diverter valves.

The multi-function lever is protected by a fuse.

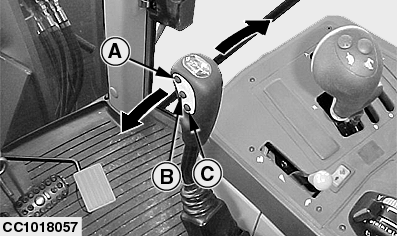

On loader equipped with 3rd, 4th and 5th functions through diverter valve, select 3rd, 4th or 5th function by continuously pressing on button (A), (B) or (C) then push the lever to the right-hand side to open the implement or pull it to the left-hand side to close the implement.

CC1018057


A-3rd function
B-4th function
C-5th function
