Operating 3rd, 4th and 5th Functions with Armrest-Integrated Multi-Function Lever

NOTE: Interlock switch actuator (A) prevents accidental actuation of the multi-function lever. The lever can be operated only when the actuator (A) is open (the operator's hand must hold it open).

See your tractor operator's manual for more information.

On loaders equipped with 3rd function, press on top of rocker switch (B) to open the implement and on bottom of rocker switch (B) to close it.

On loaders equipped with 4th or 5th functions, continuously press on button (C) or (D) to select 4th or 5th function then press on top or bottom of rocker switch (B) to activate the selected function.

As soon as the button (C) or (D) is released, the rocker switch activates the 3rd function.

If loader does not respond as expected to rocker switch movement:

• Check for correct hose connections and electrical connections. See "Identifying Hose Connections" in "Service" Section.
• Check tractor hydraulic oil level. See your tractor operator's manual.

NOTE: 4th and 5th functions need the front-end implement to be fitted with the required diverter valves.

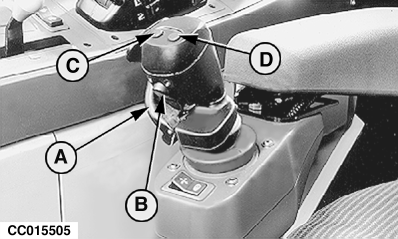

A-Interlock switch actuator
B-Rocker switch
C-4th function
D-5th function
