Bucket Level Indicator

This indicator allows you to easily check the level of the bucket or other implements.

Adjusting level indicator

Cut rod end (A) so that its extremity is flush with top of guide (B) when the bucket is level.

Indicator position for a bucket will not be the same for another implement. When using it for an implement other than a bucket:

· Level the implement.

· Loosen clamping rings (C).

· Slide guide (B) until rod end (A) is flush with top of guide (B).

· Tighten clamping rings (C).

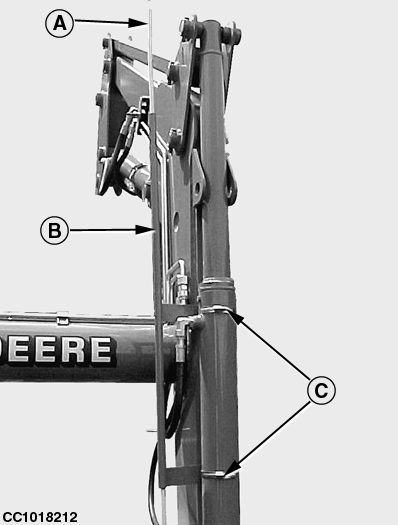

A-Rod
B-Guide
C-Clamping rings

CC1018212

OUCC006,0000968 -19-19MAY03-1/1
