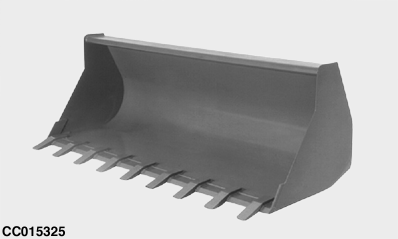

Earth BucketThe following earth buckets are available: The chart below gives the compatibility between buckets and loaders. Only the combinations marked OK are allowed. |
|
| Bucket Width | 1300 mm (51 in.) | 1600 mm (63 in.) | 1800 mm (71 in.) | 2000 mm (79 in.) | 2200 mm (87 in.) | |
|---|---|---|---|---|---|---|
| Struck Capacity | 0.45 m3 (16 cu ft) | 0.57 m3 (20 cu ft) | 0.67 m3 (24 cu ft) | 0.71 m3 (25 cu ft) | 0.79 m3 (28 cu ft) | |
| Loader with Standard Mounting Frame | Compatibility | |||||
| 531 | NSL | OK | ||||
| 531 | MSL | OK | OK | |||
| 551 | NSL | OK | OK | |||
| 551 | HSL | OK | OK | |||
| 551 | MSL | OK | OK | OK | ||
| 631 | NSL | OK | OK | |||
| 631 | HSL | OK | OK | |||
| 631 | MSL | OK | OK | OK | OK | OK |
| 651 | NSL | OK | OK | |||
| 651 | HSL | OK | OK | |||
| 651 | MSL | OK | OK | OK | OK | OK |
| 661 | MSL | OK | OK | OK | OK | OK |
| 731 | NSL | OK | OK | |||
| 731 | HSL | OK | OK | |||
| 731 | MSL | OK | OK | OK | OK | OK |
| Loader with Forward Mounting Frame | Compatibility | |||||
| 551 | NSL | OK | ||||
| 551 | HSL | OK | ||||
| 631 | NSL | OK | OK | |||
| 631 | HSL | OK | OK | |||
|
OK: Bucket allowed on this loader |
