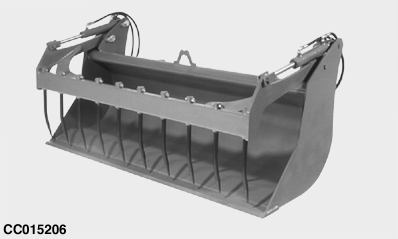

Standard Multi-Purpose Bucket

The following standard multi-purpose buckets with grapple are available:

The chart below gives the compatibility between buckets and loaders.

Only the combinations marked OK are allowed.

CC015206

Bucket Width 1600 mm (63 in.) 2000 mm (79 in.) 2200 mm (87 in.)
Struck Capacity 0.48 m3 (17 cu ft) 0.6 m3 (21 cu ft) 0.66 m3 (23 cu ft)
Loader with Standard Mounting Frame Compatibility
531 MSL OK
551 NSL OK
551 HSL OK
551 MSL OK OK
631 NSL OK
631 HSL OK
631 MSL OK OK OK
651 NSL OK
651 HSL OK
651 MSL OK OK OK
661 MSL OK OK OK
731 NSL OK
731 HSL OK
731 MSL OK OK OK
Loader with Forward Mounting Frame Compatibility
551 NSL OK
551 HSL OK
631 NSL OK OK
631 HSL OK OK



OK: Bucket allowed on this loader

OUCC006,000096D -19-19MAY03-1/1
