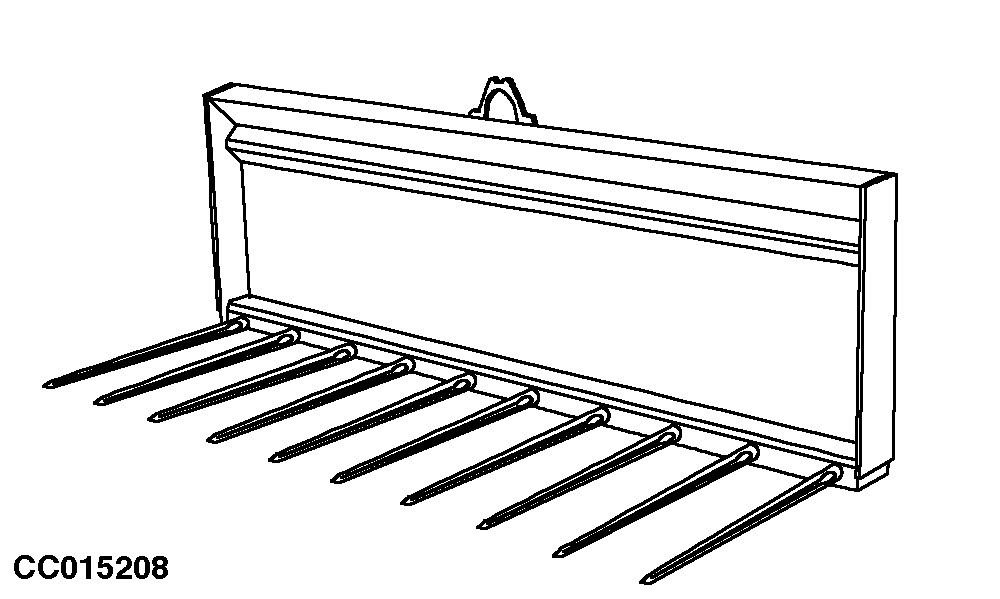

Standard Manure ForkStandard manure forks are available in the following widths: These forks are equipped with 810 mm (32 in.) tines. The chart below gives the compatibility between forks and loaders. Only the combinations marked OK are allowed. |
|
| Fork Width | 1400 mm (55 in.) | 1600 mm (63 in.) | 2000 mm (79 in.) | 2200 mm (87 in.) | |
|---|---|---|---|---|---|
| Loader with Standard Mounting Frame | Compatibility | ||||
| 531 | NSL | OK | |||
| 531 | MSL | OK | OK | ||
| 551 | NSL | OK | OK | ||
| 551 | HSL | OK | OK | ||
| 551 | MSL | OK | OK | OK | OK |
| 631 | NSL | OK | OK | OK | |
| 631 | HSL | OK | OK | OK | |
| 631 | MSL | OK | OK | OK | OK |
| 651 | NSL | OK | OK | OK | |
| 651 | HSL | OK | OK | OK | |
| 651 | MSL | OK | OK | OK | OK |
| 661 | MSL | OK | OK | OK | OK |
| 731 | NSL | OK | OK | OK | |
| 731 | HSL | OK | OK | OK | |
| 731 | MSL | OK | OK | OK | OK |
| Loader with Forward Mounting Frame | Compatibility | ||||
| 551 | NSL | OK | OK | ||
| 551 | HSL | OK | OK | ||
| 631 | NSL | OK | OK | ||
| 631 | HSL | OK | OK | ||
|
OK: Fork allowed on this loader |
