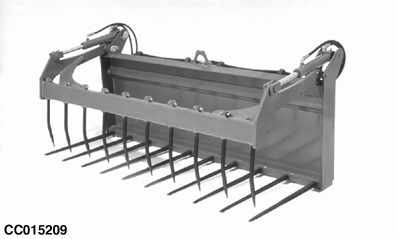

Standard Manure Fork with GrappleStandard manure forks with grapples are available in the following widths: The chart below gives the compatibility between forks and loaders. Only the combinations marked OK are allowed. |
|
| Fork Width | 1400 mm (55 in.) | 1600 mm (63 in.) | 2000 mm (79 in.) | |
|---|---|---|---|---|
| Loader with Standard Mounting Frame | Compatibility | |||
| 531 | MSL | OK | OK | |
| 551 | NSL | OK | OK | |
| 551 | HSL | OK | OK | |
| 551 | MSL | OK | OK | OK |
| 631 | NSL | OK | OK | |
| 631 | HSL | OK | OK | |
| 631 | MSL | OK | OK | OK |
| 651 | NSL | OK | OK | |
| 651 | HSL | OK | OK | |
| 651 | MSL | OK | OK | OK |
| 661 | MSL | OK | OK | OK |
| 731 | NSL | OK | OK | |
| 731 | HSL | OK | OK | |
| 731 | MSL | OK | OK | OK |
| Loader with Forward Mounting Frame | Compatibility | |||
| 551 | NSL | OK | ||
| 551 | HSL | OK | ||
| 631 | NSL | OK | OK | |
| 631 | HSL | OK | OK | |
|
OK: Fork allowed on this loader NOTE: This implement requires the loader to be equipped with a third hydraulic function. |
