Heavy-Duty Manure Fork with Grapple

Grapples are available to fit heavy-duty manure forks.

Grapples on heavy-duty manure/silage forks improve silage handling.

The chart below gives the compatibility between heavy-duty manure fork with grapple and loaders.

Only the combinations marked OK are allowed.

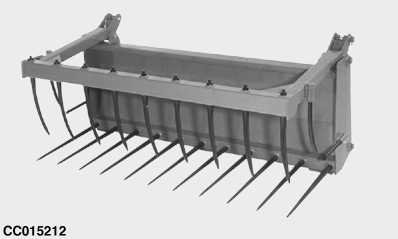

CC015212

Fork with Grapple

Fork Width 1550 mm (61 in.) 1900 mm (75 in.)
Loader with Standard Mounting Frame Compatibility
551 MSL OK
631 NSL OK
631 HSL OK
631 MSL OK OK
651 NSL OK
651 HSL OK
651 MSL OK OK
661 MSL OK OK
731 NSL OK
731 HSL OK
731 MSL OK OK
751 MSL   OK
746 MSL   OK
Loader with Forward Mounting Frame Compatibility
631 NSL OK
631 HSL OK



OK: Fork allowed on this loader

NOTE: Grapples require the loader to be equipped with a third hydraulic function.
