Identifying Hose Connections on Individual Couplers

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor as shown.

Hose connections are identified by color coded dust covers. Colored plugs are installed on the mid-mounting individual-couplers at loader predelivery. Corresponding colored caps are installed on loader hose ends.

Use following chart to identify hoses and replace missing colored dust covers:

Function Colored Covers
A- Rod-end lift cylinders... Red
B- Rod-end implement cylinders... Green
C- Rod-end bucket cylinders... Black
D- Head-end bucket cylinders... Yellow
E- Head-end implement cylinders... Orange
F- Head-end lift cylinders... Blue

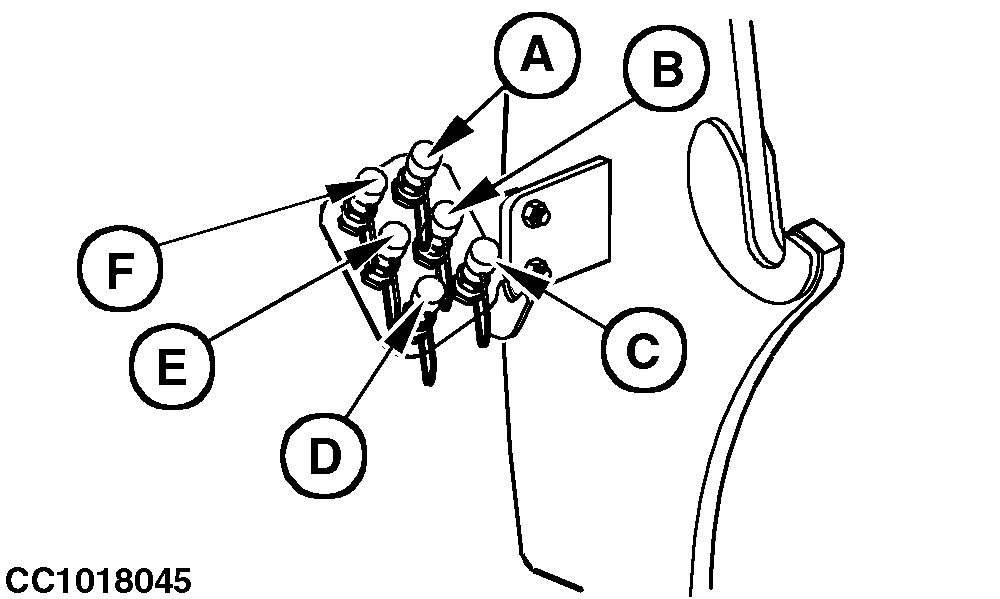

CC1018045
CC015445


A-Red
B-Green
C-Black
D-Yellow
E-Orange
F-Blue

OUCC006,0000979 -19-19MAY03-1/1
