Identifying Connections on Multi-Coupler

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor as shown.

Hose connections are identified by color coded dust covers. Colored plugs are installed on the mid-mounting individual-couplers at loader predelivery. Corresponding colored caps are installed on loader hose ends.

Use following chart to identify hoses and replace missing colored dust covers:

Function Color
A- Rod-end lift cylinders... Red
B- 4th and 5th function Black Wire
C- Rod-end implement cylinders... Green
D- Rod-end bucket cylinders... Black
E- Head-end bucket cylinders... Yellow
F- 3rd function diverter valve Red Wire
G- Head-end implement cylinders... Orange
H- Head-end lift cylinders... Blue




A-Red
B-Black Wire
C-Green
D-Black
E-Yellow
F-Red Wire
G-Orange
H-Blue

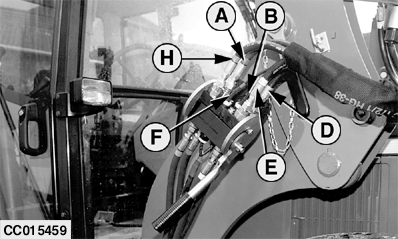

CC015459

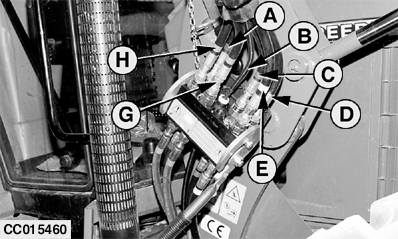

CC015460

OUCC006,000097A -19-19MAY03-1/1
