Storing the Loader

NOTE: Loader may be stored attached or detached from tractor.

Store loader in a dry, protected place. If stored outside, cover with a waterproof material.

Retract all hydraulic cylinders, if possible. If not, coat exposed cylinder rods with grease to prevent rusting.

causym CAUTION: Detached loader can fall and cause serious injury or death. Securely store implements to prevent falling. Keep playing children and bystanders away from storage area.

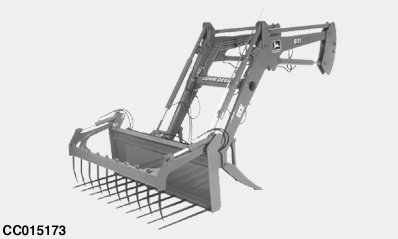

For detached loader:

  • Install dust covers on hose ends.
  • Place hoses on loader. DO NOT lay them on the ground.
W14000
CC015173

OUCC006,000097C -19-19MAY03-1/1
