As Required - Auto-Latch Device

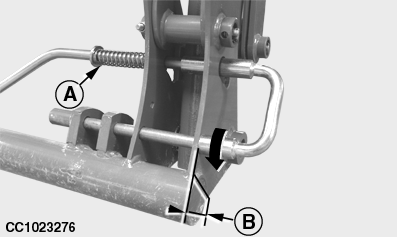

1. Check holder spring (A), proceed as follows:

a. Turn handle of auto-latch device counterclockwise.

b. If the gap dimension (B) is not zero, replace holder spring (A).

See your John Deere dealer.

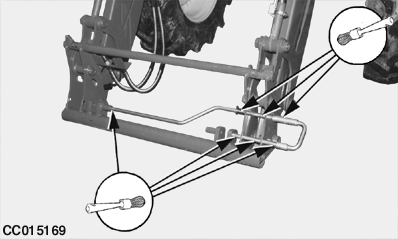

2. Apply grease, oil or lubricant spray to rods and springs.


A-Holder spring
B-Gap

CC1023276
CC015169
