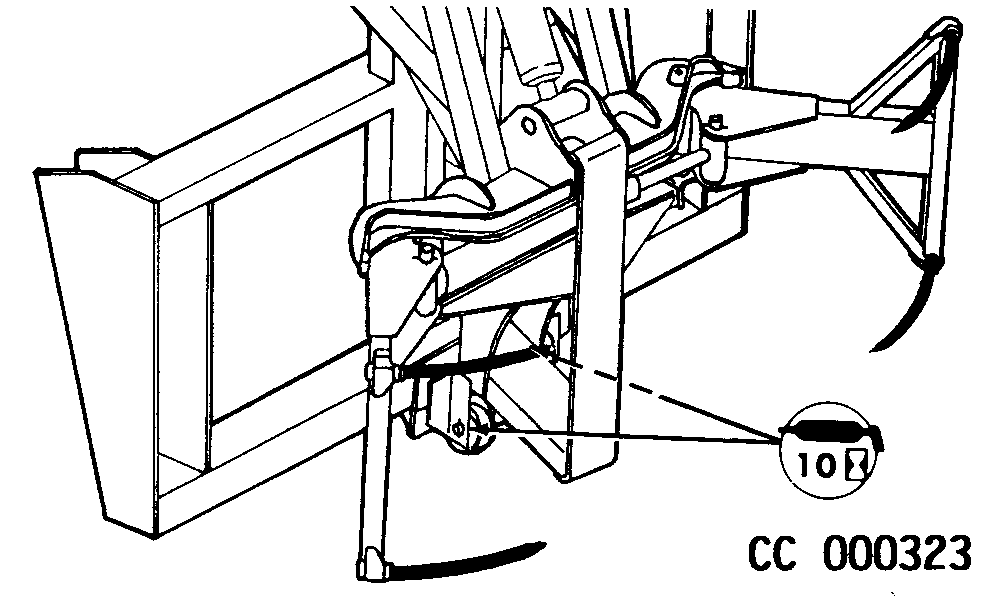

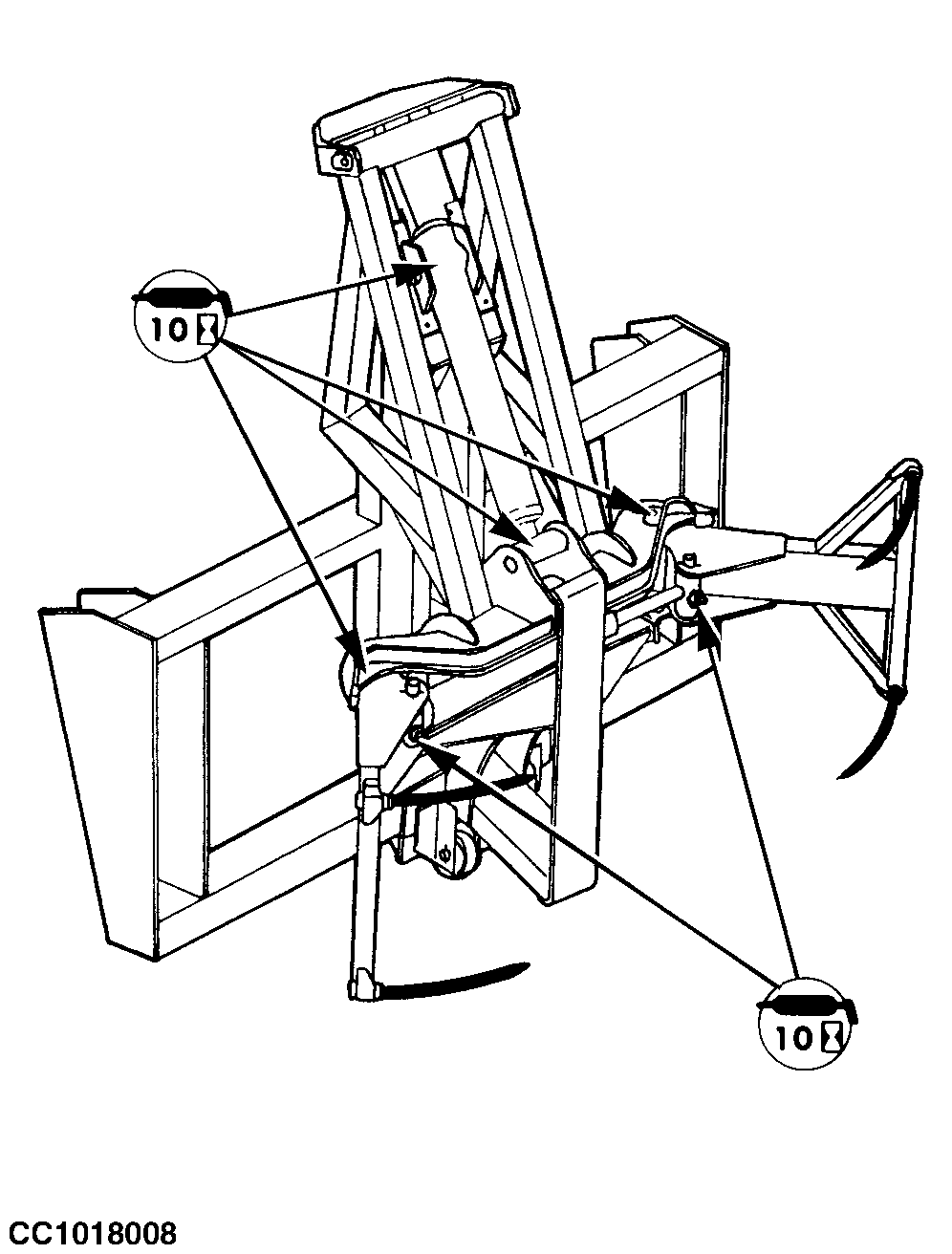

Every 10 Hours - Round Bale Elevator and Double Frame Bale Elevator

Lubricate four fittings on elevator hydraulic cylinders.

Lubricate two fittings on gripper arm pivots.

Apply grease, oil or spray lubricant to roller axles.

Do not lubricate between rollers and rolling rail.

OUCC006,0000998 -19-19JUN03-1/1
