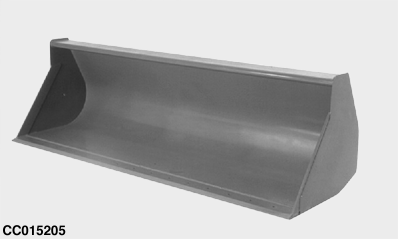

Heavy-Duty BucketThe following heavy-duty buckets are available: The chart below gives the compatibility between buckets and loaders. Only the combinations marked OK are allowed. |
|
| Bucket Width | 1600 mm (63 in.) | 2000 mm (79 in.) | 2400 mm (94.5 in.) | |
|---|---|---|---|---|
| Struck Capacity | 0.57 m3 (20 cu ft) | 0.71 m3 (25 cu ft) | 0.86 m3 (30 cu ft) | |
| Loader with Standard Mounting Frame | Compatibility | |||
| 531 | MSL | OK | ||
| 551 | NSL | OK | ||
| 551 | HSL | OK | ||
| 551 | MSL | OK | ||
| 631 | NSL | OK | ||
| 631 | HSL | OK | ||
| 631 | MSL | OK | OK | OK |
| 651 | NSL | OK | ||
| 651 | HSL | OK | ||
| 651 | MSL | OK | OK | |
| 661 | MSL | OK | OK | OK |
| 731 | NSL | OK | ||
| 731 | HSL | OK | ||
| 731 | MSL | OK | OK | OK |
| 751 | MSL | OK | OK | |
| 746 | MSL | OK | OK | |
| Loader with Forward Mounting Frame | Compatibility | |||
| 631 | NSL | OK | ||
| 631 | HSL | OK | ||
|
OK: Bucket allowed on this loader Heavy-duty buckets can be equipped with a reversible bolt-on cutting edge or bolted teeth. |
OUCC006,00009A3 -19-08JUL03-1/1 |
