Heavy-Duty Multi-Purpose Bucket

The following multi-purpose buckets are available:

The chart below gives the compatibility between buckets and loaders.

Only the combinations marked OK are allowed.

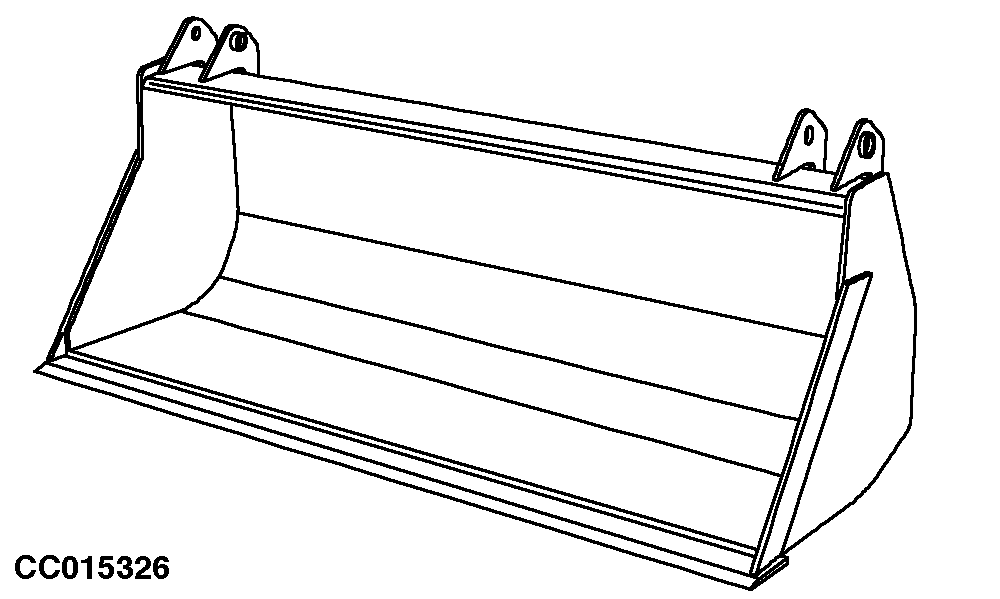

CC015326

Bucket Width 1600 mm (63 in.) 2000 mm (79 in.) 2400 mm (94 in.)
Struck Capacity 0.73 m3 (26 cu ft) 0.9 m3 (32 cu ft) 1.09 m3 (38 cu ft)
Loader with Standard Mounting Frame Compatibility
551 MSL OK
631 NSL OK
631 HSL OK
631 MSL OK
651 NSL OK
651 HSL OK
651 MSL OK
661 MSL OK OK OK
731 NSL OK
731 HSL OK
731 MSL OK OK OK
751 MSL   OK OK
746 MSL   OK OK



OK: Bucket allowed on this loader

OUCC006,00009A8 -19-08JUL03-1/1
