Setting Valves (Loader Operated from SCV, ESCV, EHSCV and EHICV)

CAUTION: Help prevent personal injury or death caused by objects falling on the operator. Control valves have automatic cylinder extend and/or retract position (detent) that must be locked out for loader operation. Unintentional movement of the control lever to the detent position may cause the loader to rise to full height unexpectedly and the load to fall back on the operator.

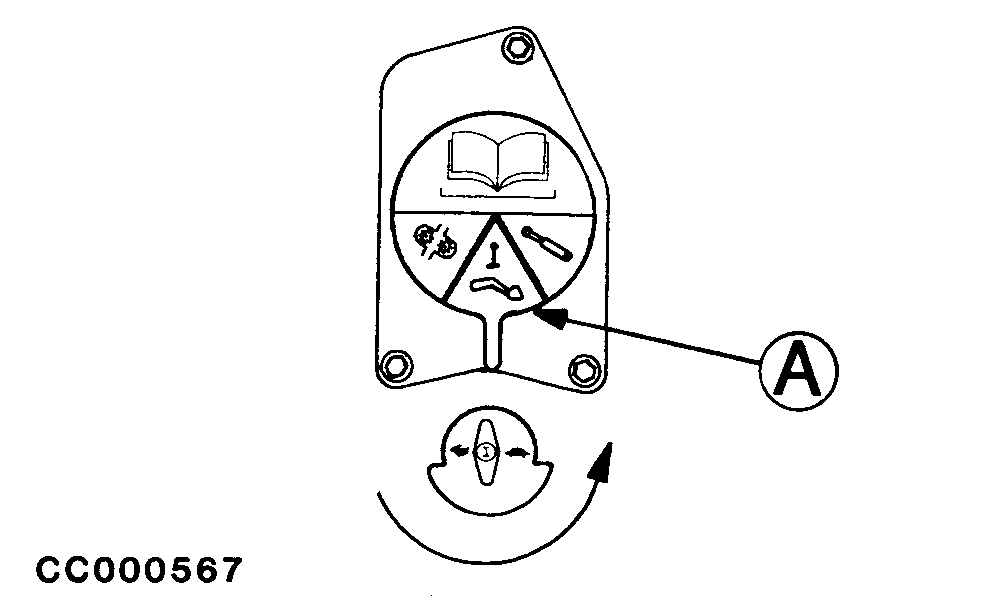

On loaders operated from SCV, turn detent selector knob (A) to "loader" position and adjust valves for fastest rate of operation. (See your tractor Operator's Manual to make adjustments.)

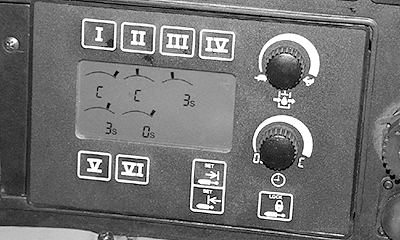

On loaders operated from ESCV, EHSCV and EHICV, set time detent to zero (No Time Detent) and adjust valve for fastest rate of operation. (See your tractor Operator's Manual to make adjustments.)

SCV: Selective Control Valve

ESCV: Electronic Selective Control Valve

EHSCV: Electro-Hydraulic Selective Control Valve

EHICV: Electro-Hydraulic Independent Control Valve

A-Detent selector knob
