Attaching 746 Loader

causym CAUTION: DO NOT allow bystanders while attaching the loader.

To prevent serious injury, loader must be attached by the tractor driver himself.

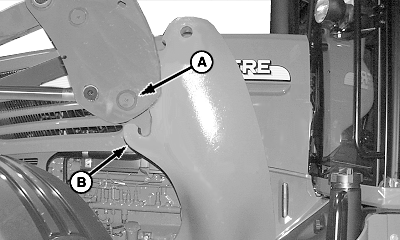

1. Center tractor between loader masts, stopping tractor when hooks (B) on mounting frames are positioned under pins (A) on loader masts on each side.

2. Engage parking lock, apply handbrake and shut off engine.

W06176


A-Pin (1 each side)
B-Hook (1 each side)

OUCC006,00009E0 -19-07AUG03-1/9

3. Relieve hydraulic pressure.

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

X9811

OUCC006,00009E0 -19-07AUG03-2/9

4. Remove key and lock out controls. (See your Tractor Operator's Manual.)

5. Connect hydraulics.

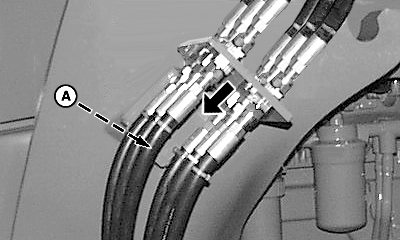

a. Slide mid-mount bracket into bracket on loader mast and attach with quick-lock pin (A).


A-Quick-Lock Pin

W06178

Mid-Mount Bracket

OUCC006,00009E0 -19-07AUG03-3/9

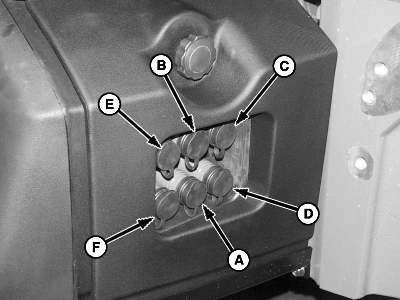

b. Connect hydraulic hoses to mid-mount valve using colored dust covers, identification tags or marks to match mating couplers. (See Identifying Hose Connections in Service Section.)


A-Yellow
B-Black
C-Blue
D-Red
E-Orange
F-Green

W06158

Tractor Mid-Mount EHSCV

OUCC006,00009E0 -19-07AUG03-4/9

6. Start engine, release handbrake, place transmission in NEUTRAL to allow tractor movement.

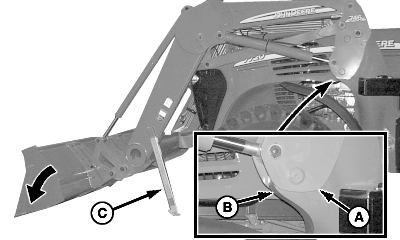

7. Slowly dump bucket until masts (A) seat in mounting frames (B) and stands (C) are slightly off ground.

8. Engage parking lock, apply handbrake, shut off engine, remove key.


A-Mast
B-Mounting Frame
C-Stand

W06182

OUCC006,00009E0 -19-07AUG03-5/9

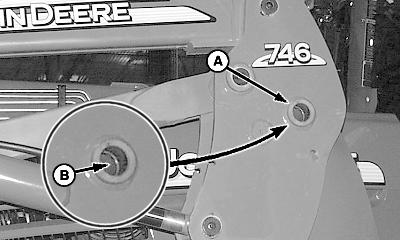

9. Make sure mast bushings (A) are aligned with frame bushings (B) on both sides of loader.


A-Bushing, Mast
B-Bushing, Frame

W06177

OUCC006,00009E0 -19-07AUG03-6/9

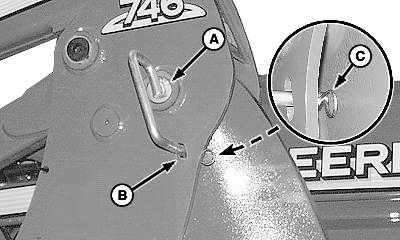

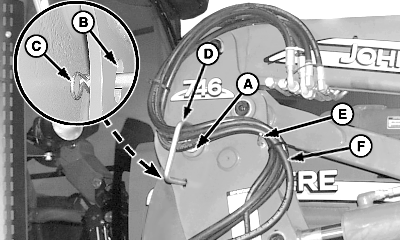

10. On both sides of loader install pins (A):

  • Left-Hand Side;

    a. Install pin (A) and insert handle end into slot (B).
    b. Install spring locking pin (C).

  • Right-Hand Side;

    a. Install pin (A) with hydraulic hoses (F) routed through pin handle (D) as shown. Insert handle end into slot (B).
    b. Install spring locking pin (C).
    c. Route hoses over support (E).


A-Pin
B-Slot
C-Spring Locking Pin
D-Handle
E-Support
F-Hoses

W06168

Left-Hand Side

W05987

Right-Hand Side

OUCC006,00009E0 -19-07AUG03-7/9

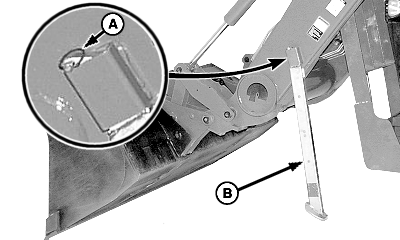

11. Remove quick lock pins (A) and parking stands (B).


A-Quick Lock Pin (1 each side)
B-Parking Stand (1 each side)

W05969

OUCC006,00009E0 -19-07AUG03-8/9

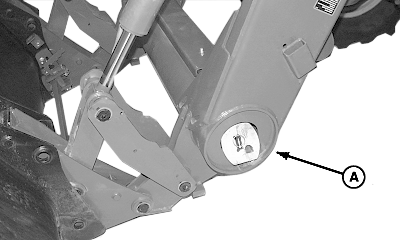

12. Store parking stands in tube (A). Fasten with quick lock pins.

13. Check loader operation.


A-Storage Tube

W06229
