Operating Loader with COMMANDARM™ Controls

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

Set Valves. (See Setting Valves in Preparing the Tractor Section.)

Using levers:

  • Left-hand SCV lever (A) controls loader lift (boom) cylinders. Moving the lever all the way forward goes into a 'FLOAT' position and has a detent to hold it there.

    Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

  • Right-hand SCV lever (B) controls loader bucket cylinders. Moving the lever back rolls the bucket back. Moving the lever forward dumps the bucket forward.

Key Lever Movement Loader Operation
A Left Lever Forward Boom Lower
  Left Lever Locked Forward Boom Float
  Left Lever Back Boom Raise
B Right Lever Forward Bucket Dump
  Right Lever Back Bucket Roll Back



NOTE: Oil flow limitations may limit two loader operations at one time, such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.

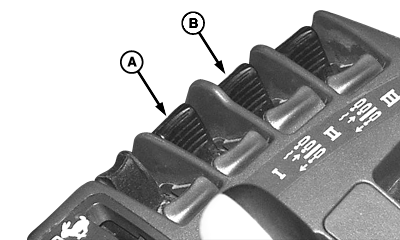

W06230


A-Left lever
B-Right lever

COMMANDARM is a trademark of Deere & Company

OUCC006,00009E7 -19-13AUG03-1/1
