The loader suspension can be deactivated manually to perform precision tasks.

IMPORTANT: To activate or deactivate the suspension, the attachment must be unloaded and in lower position.

Turn shut-off valve lever (A) counterclockwise to deactivate 531 loader suspension.

Turn shut-off valve lever (A) clockwise to activate 531 loader suspension.

Turn shut-off valve lever (A) clockwise to deactivate 551, 631, 651, 661, 731 and 751 loader suspension.

Turn shut-off valve lever (A) counterclockwise to activate 551, 631, 651, 661, 731 and 751 loader suspension.

A-Shut-off valve lever

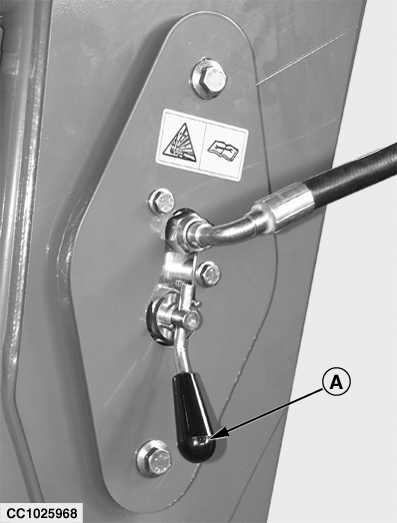

531 Loader

CC1025968

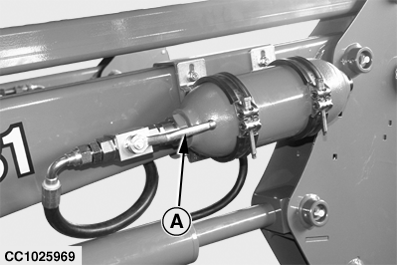

551, 631, 651, 661, 731 and 751 Loaders

OUCC006,0000B0D -19-17JUN04-1/1
