Transporting the Baler

causym CAUTION: Use care when towing baler at transport speeds. Reduce speed if the weight of baler exceeds weight of tractor.

To avoid injury to others, transport baler with bale chamber empty.

IMPORTANT: Do not make sharp turns when transporting baler. Damage could result if tongue strikes tractor tire.

IMPORTANT: Always observe local road traffic regulation when driving on public roads.

1. Empty bale chamber before transporting.

2. Close gate completely.

3. Raise pickup fully.

CC03745,0000446 -19-03DEC02-1/3

causym CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost.

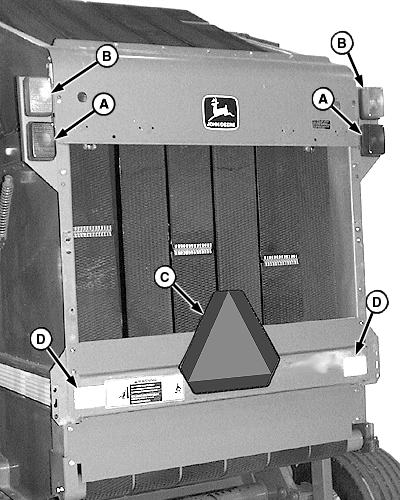

4. Be sure SMV emblem (C), turn/warning lights (B), tail lights (A) and reflectors (D) are clean and visible. Make sure baler turn/warning lights operate with tractor warning lights and turn signals.

5. Make sure jackstand is in storage position.


A-Tail Lights (Red)
B-Turn/Warning Lights (Amber)
C-SMV Emblem
D-Reflectors

TS951
E47983

CC03745,0000446 -19-03DEC02-2/3

causym CAUTION: A safety chain will help control drawn equipment should it accidentally separate from the drawbar. Using the appropriate adapter parts, attach the chain to the tractor drawbar support or other specified anchor location. Provide only enough slack in the chain to permit turning. Do not use safety chain for towing.

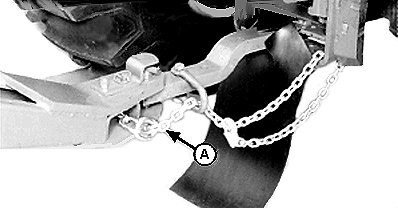

6. Make sure safety chain (A) is attached to drawbar support or other specified anchor locations. Do not fasten to drawbar. Provide only enough slack in the chain to permit turning.

7. If transporting machine behind a tractor without connecting PTO driveline, remove PTO driveline assembly. Transport parts in another vehicle to prevent possible loss, damage, and contamination to driveline assembly.

8. When transporting baler at high speed, a rocking motion may occur. Reduce speed until rocking stops.

Do not tow baler at a speed exceeding 25 km/h (16 mph).

E44415


A-Safety Chain

CC03745,0000446 -19-03DEC02-3/3
