Adjusting Drawbar

IMPORTANT: Before attaching baler, be sure to adjust drawbar. Replace all shields.

Vertically align drawbar hitch pin hole with centerline of tractor PTO shaft.

Set drawbar to the following specifications:

Specification

End of PTO shaft to drawbar hitch pin hole axis (A) -Distance 355 mm 14 in.
PTO shaft centerline to drawbar upper face (B) -Distance 150-305 mm 6-12 in.
Ground to drawbar upper face (C) -Distance 330-510 mm 13-20 in.

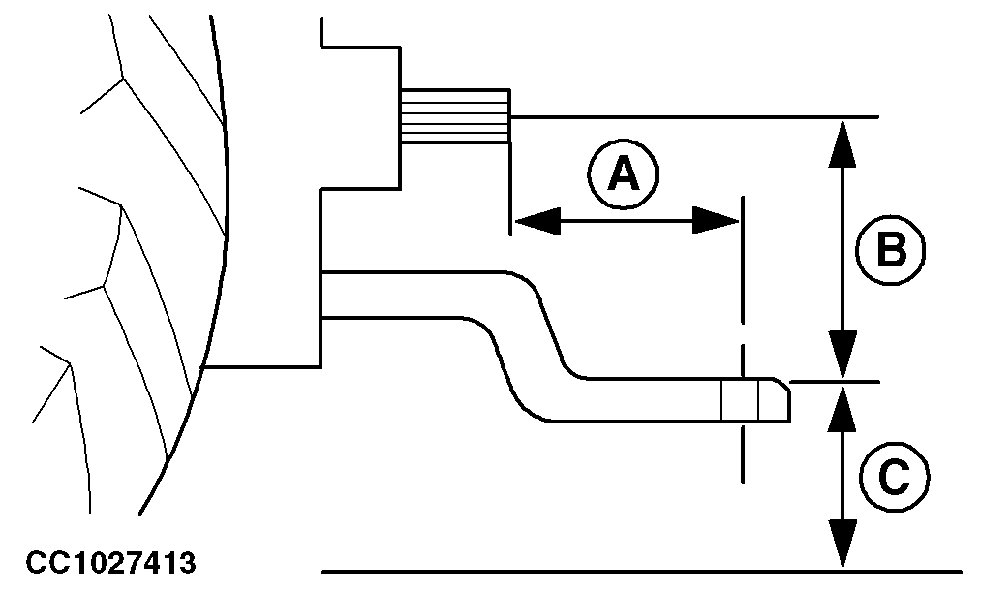

CC1027413


A-355 mm (14 in.)
B-150-305 mm (6-12 in.)
C-330-510 mm (13-20 in.)

CC03745,0000B45 -19-03JUN05-1/1
