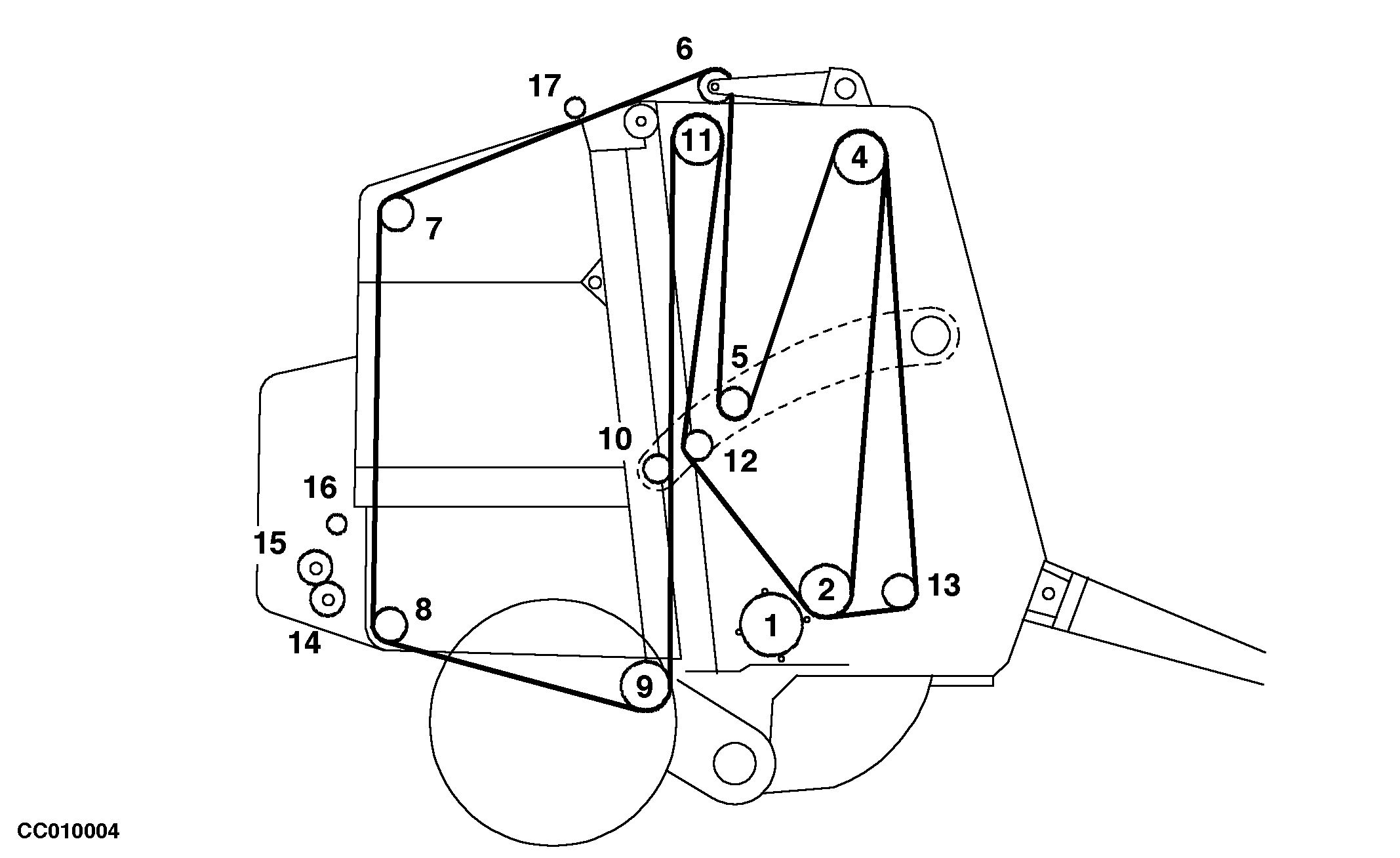

1-Starter roll
2-Lower belt drive roll
4-Upper belt drive roll
5-Front tension arm idler roll
6-Top arm roll

7-Upper rear gate roll
8-Lower rear gate roll
9-Lower gate roll
10-Rear tension arm idler roll
11-Top idler roll

12-Center tension arm idler roll
13-Belt staggering roll or cleaning auger

14-Galvanized net feed roll
15-Rubber net feed roll
16-Net guide roll
17-Upper rear gate idler roll

NOTE: Numbers shown above must not be used when ordering roll replacement parts. Always refer to relevant parts catalog.
