Adjusting Upper Arm Spring (592 Baler with Precutter Device Only)

If spring has been replaced or lock nuts have been removed, adjust spring as follows:

Close the gate and lower the belt tension arm.

Adjust lock nuts (A) until dimension (B) is:

Specification

Upper arm spring (592 baler with precutter device) -Length 930 ± 1.5 mm (36.61 ± 0.06 in.)

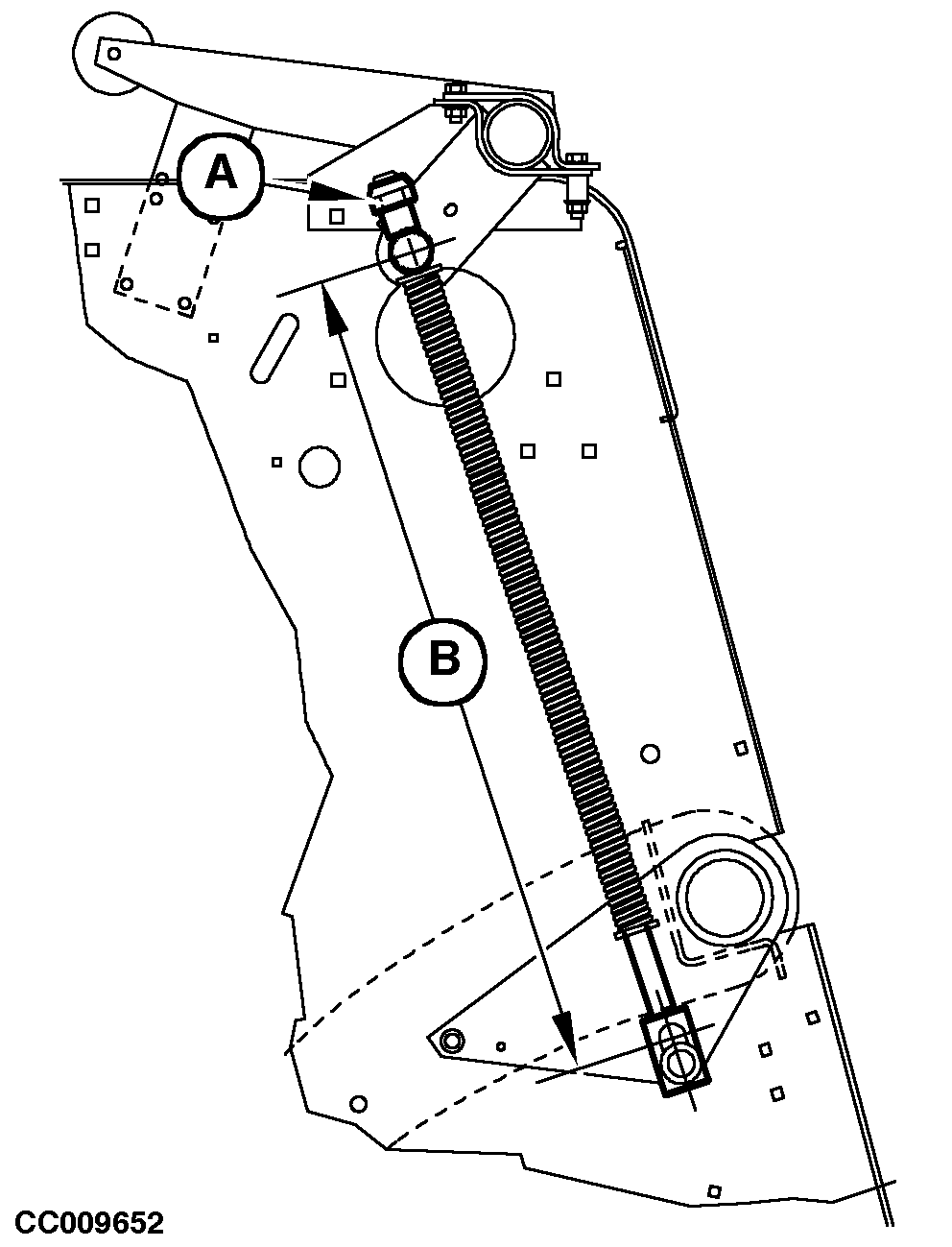

CC009652
