Routing Belts Through the Baler (572 with Cleaning auger)

    Route belts as shown in illustration, passing them through the individual guides. See illustrations for location of long and short belts.

  • Length (A) of short belts = 10.23 m ± 0.012 m (33 ft 7 in ± 0.47 in)
  • Length (B) of long belts = 10.42 m ± 0.012 m (34 ft 2 in ± 0.47 in)

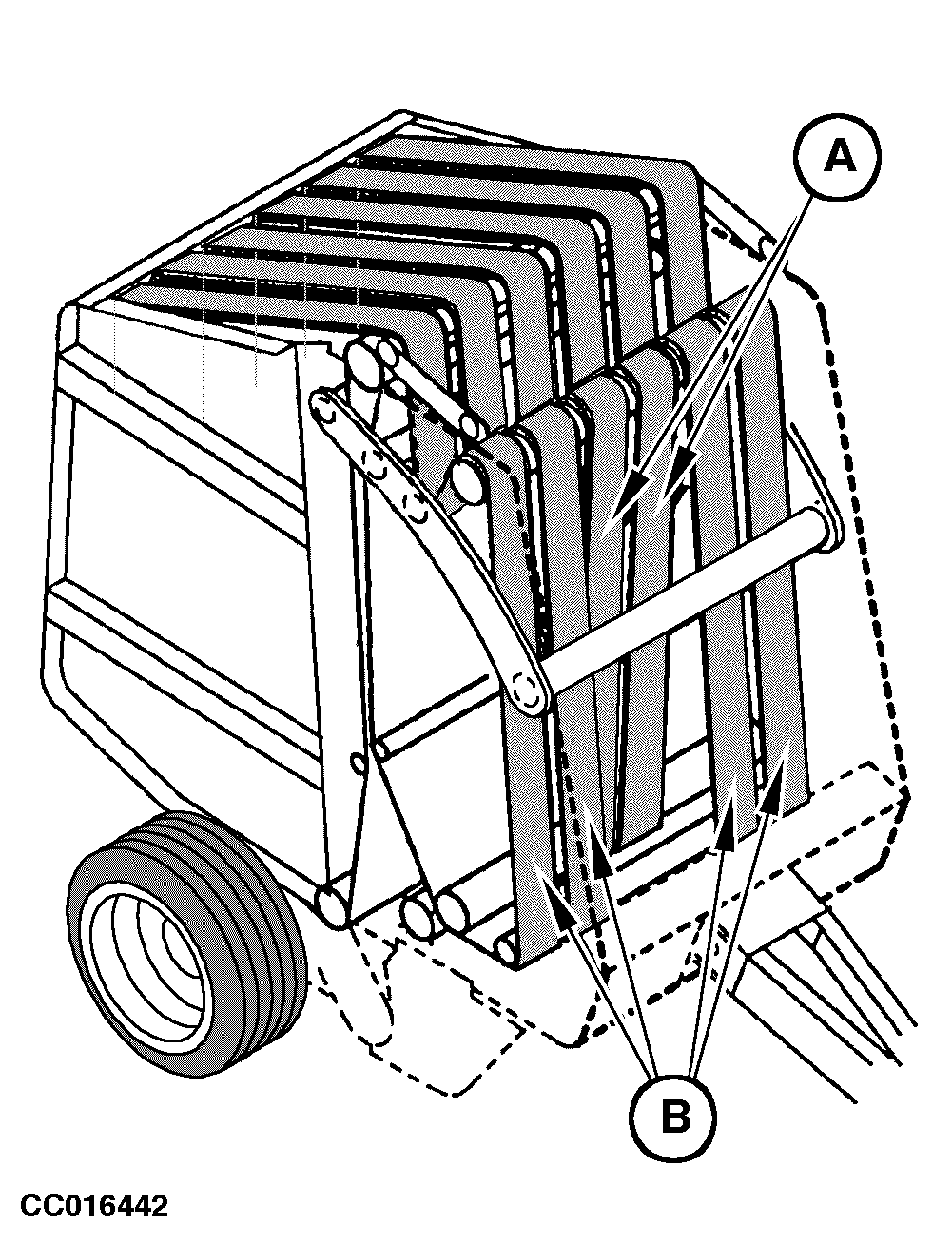

CC016442

572 baler with cleaning auger

CC016444

572 Baler

OUCC006,000036E -19-02APR01-1/1
