Secure Gate Safely (572 and 582)

On 572 and 582 balers, position gate lock device control lever (B) in locked position before working on or around baler with gate in raised position. Refer to "Operating the Baler" Section for gate stop instructions.

To avoid injury stay clear of gate while it is being raised and lowered.

Be sure bystanders are clear before operating gate.

Remove foreign objects from machine. Refer to "Operating the Baler" Section for removal of foreign objects.

CC1019851

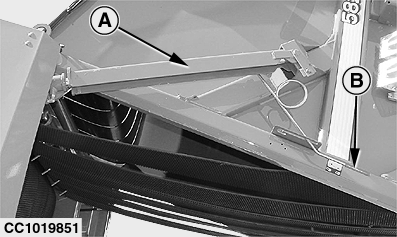

582 baler gate lock device


A-Gate Lock Device
B-Lock Device Control Lever

OUCC006,0000378 -19-02APR01-1/1
