Every 10 Hours

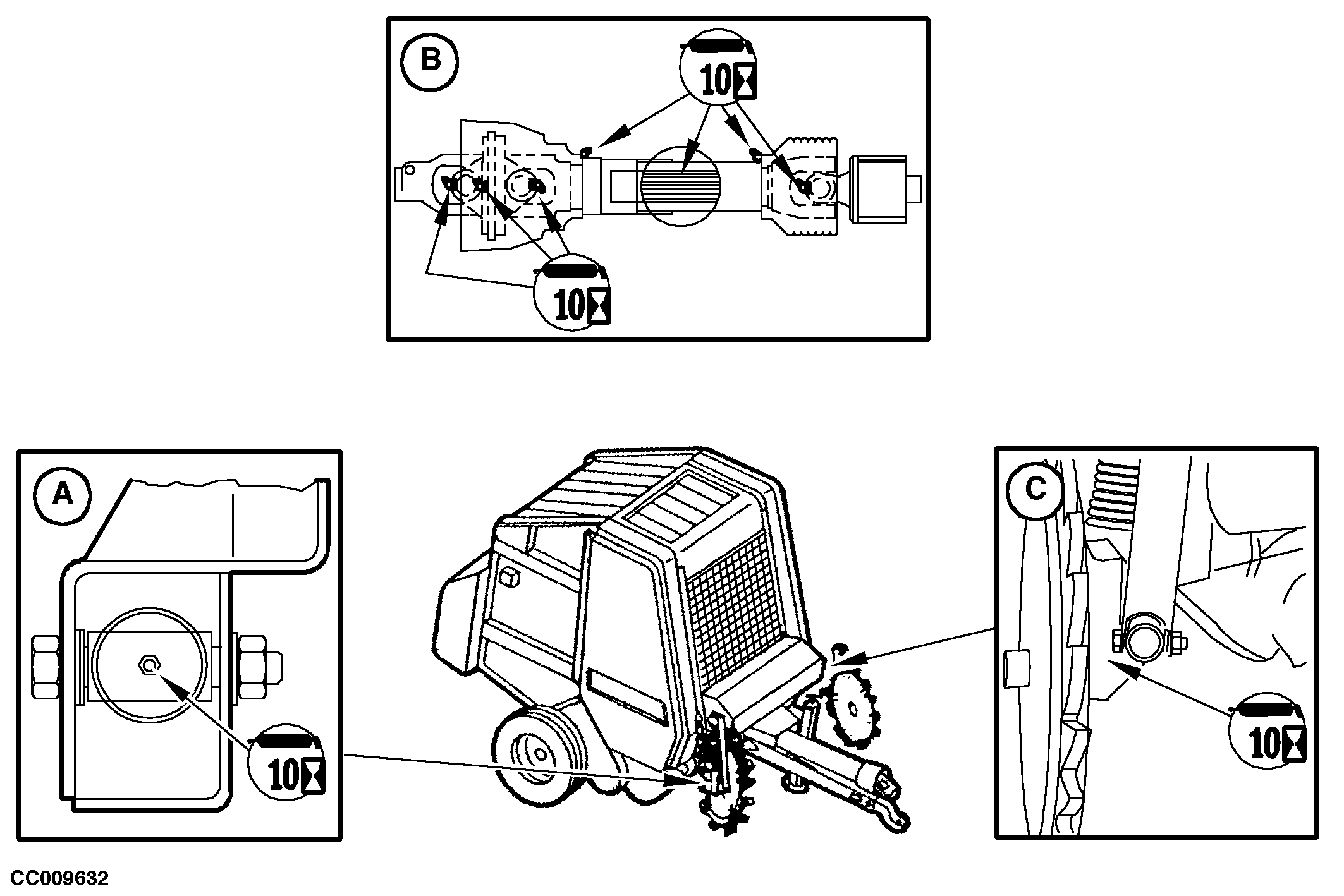

CC009632


A-Converging wheels

B-Powerline

C-Wheel support pivot



Lubricate with John Deere GREASE-GARD.

OUCC006,0000384 -19-02APR01-1/2

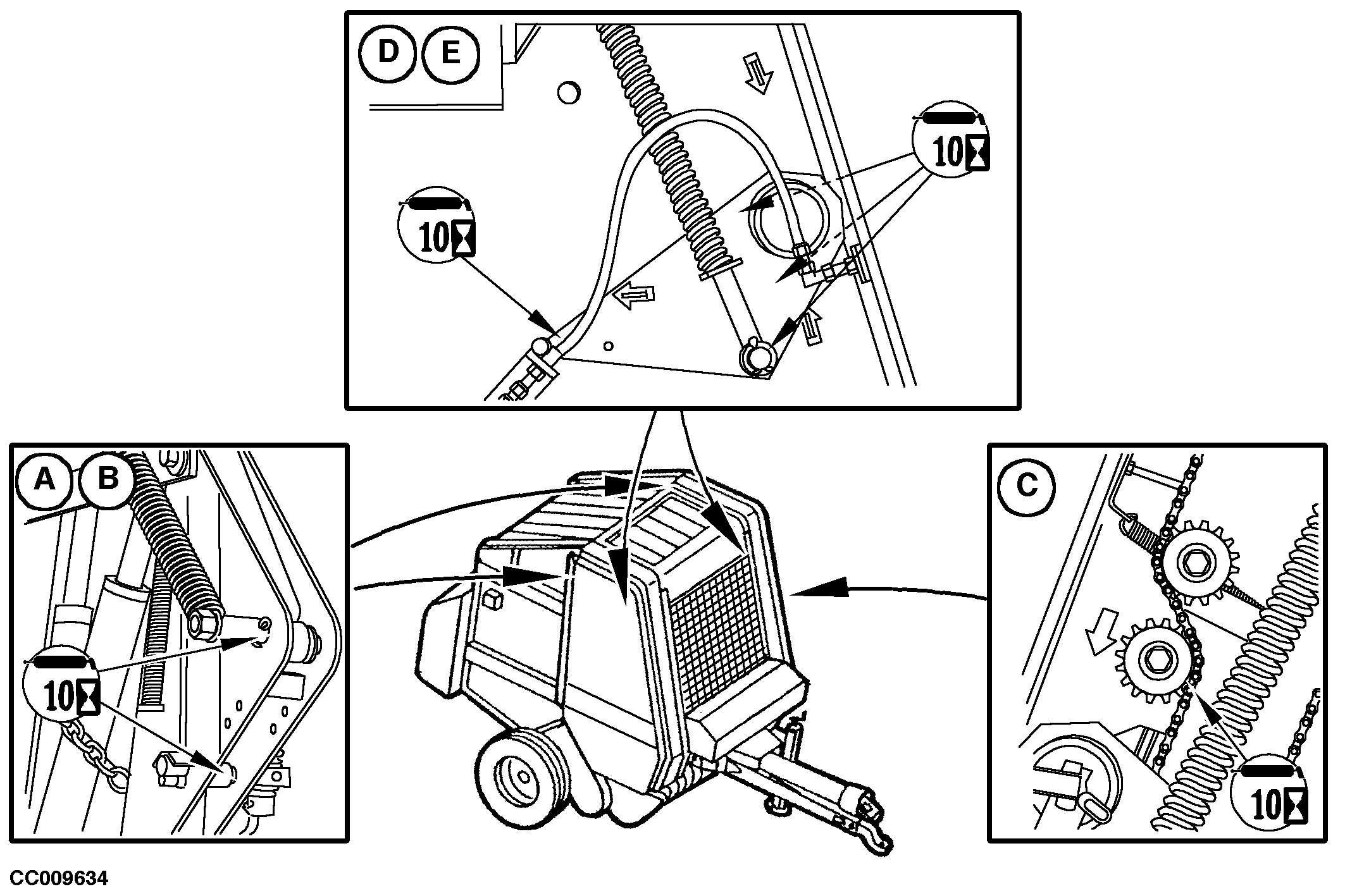

CC009634


A-Push bar shock absorbers and spring bolts (592 only)


B-Push bar eyebolts and eyebolt pivots (592 only)


C-Drive chain idler
D-Tension arm pivots


E-Tension cylinder rod (592 only)

Lubricate with John Deere GREASE-GARD.

OUCC006,0000384 -19-02APR01-2/2
