Adjusting 2.00 m (6 ft 7 in.) Precutter Pickup Float Spring

Hydraulically raise pickup to release spring pressure.

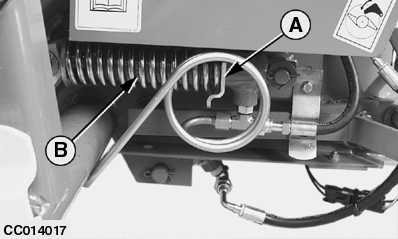

Set the bottom washer (A) into one of the 4 grooves on each cylinder barrel (B).

Lower the pickup.

NOTE: This setting should allow the pickup to drop completely when lowered. If not, slightly reduce spring tension.

NOTE: When operating at heights other than the extreme down position, additional spring force will be required to obtain adequate float.
