Routing Belts Through the Baler (572 without Cleaning auger)

    Route belts as shown in illustration, passing them through the individual guides. See illustrations for location of long and short belts.

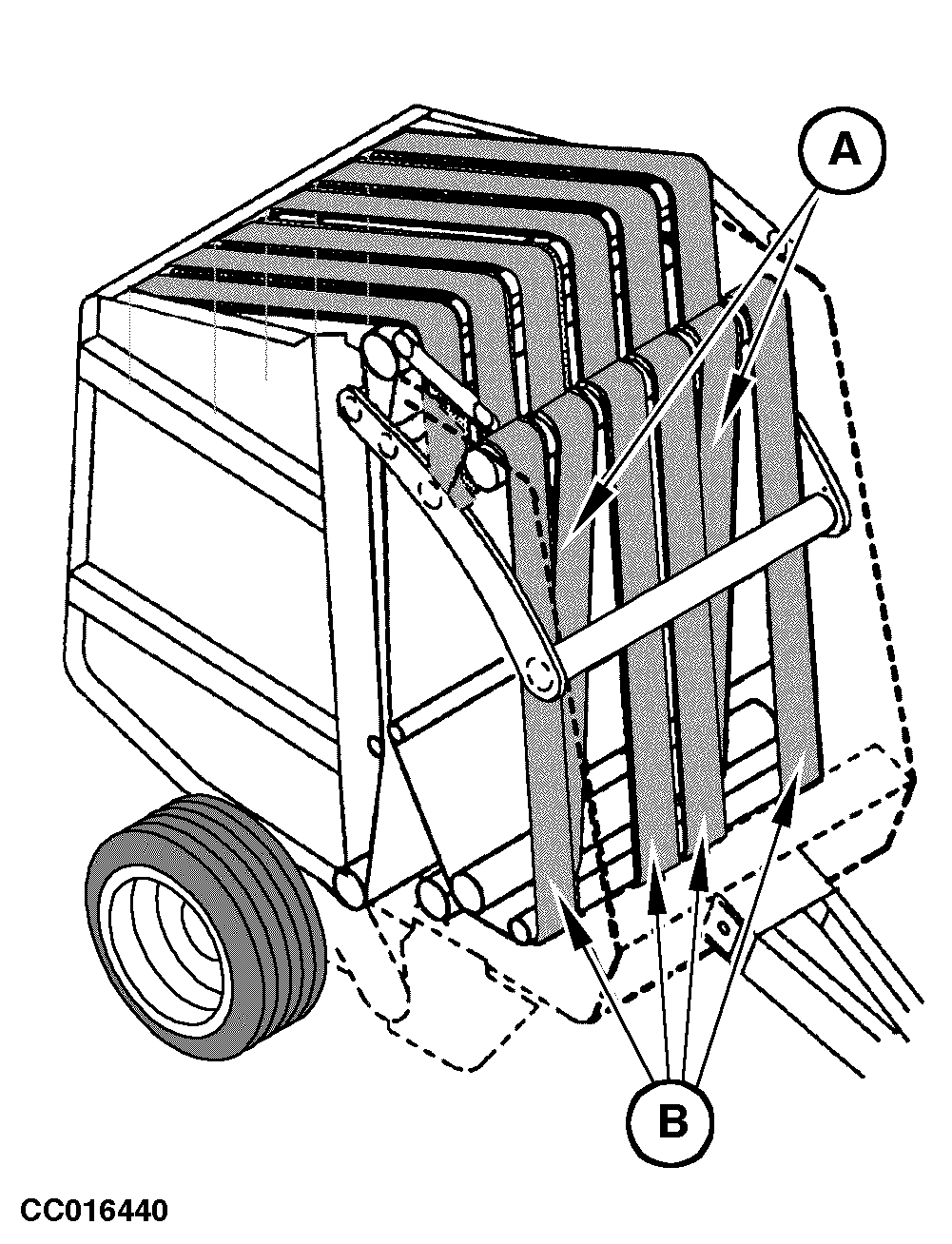

  • Length (A) of short belts = 10.23 m ± 0.012 m (33 ft 7 in ± 0.47 in)
  • Length (B) of long belts = 10.42 m ± 0.012 m (34 ft 2 in ± 0.47 in)
CC016440

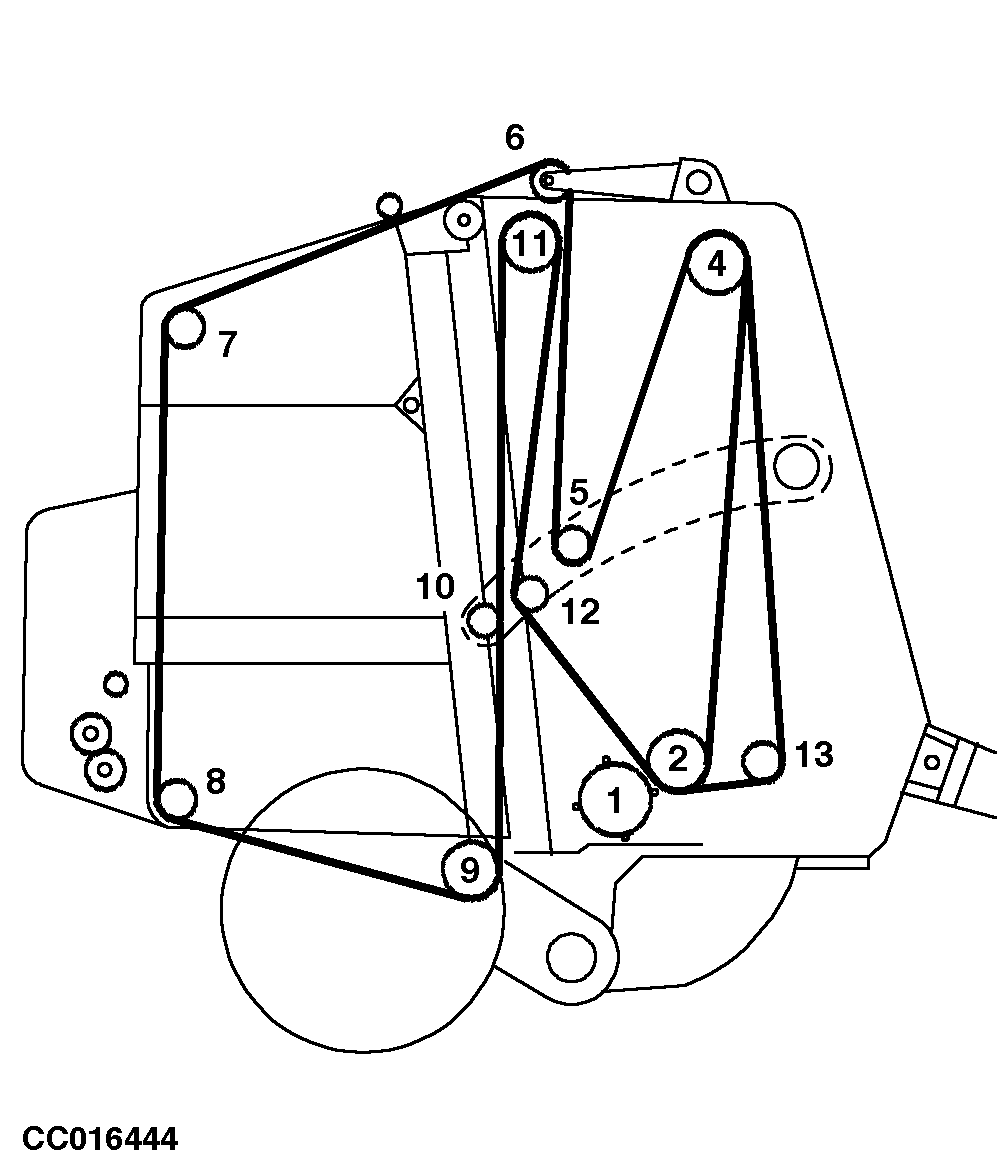

572 baler without cleaning auger

CC016444

572 Baler
