Adjusting Gear Case Output Shaft Sensor

CAUTION: DO NOT TAKE CHANCES! Never use any type of tool or spanner on shaft while tractor engine is running. Shut off tractor engine, remove key and wait for moving parts to come to a standstill. Always remove tool from shaft as soon as you have finished using it.

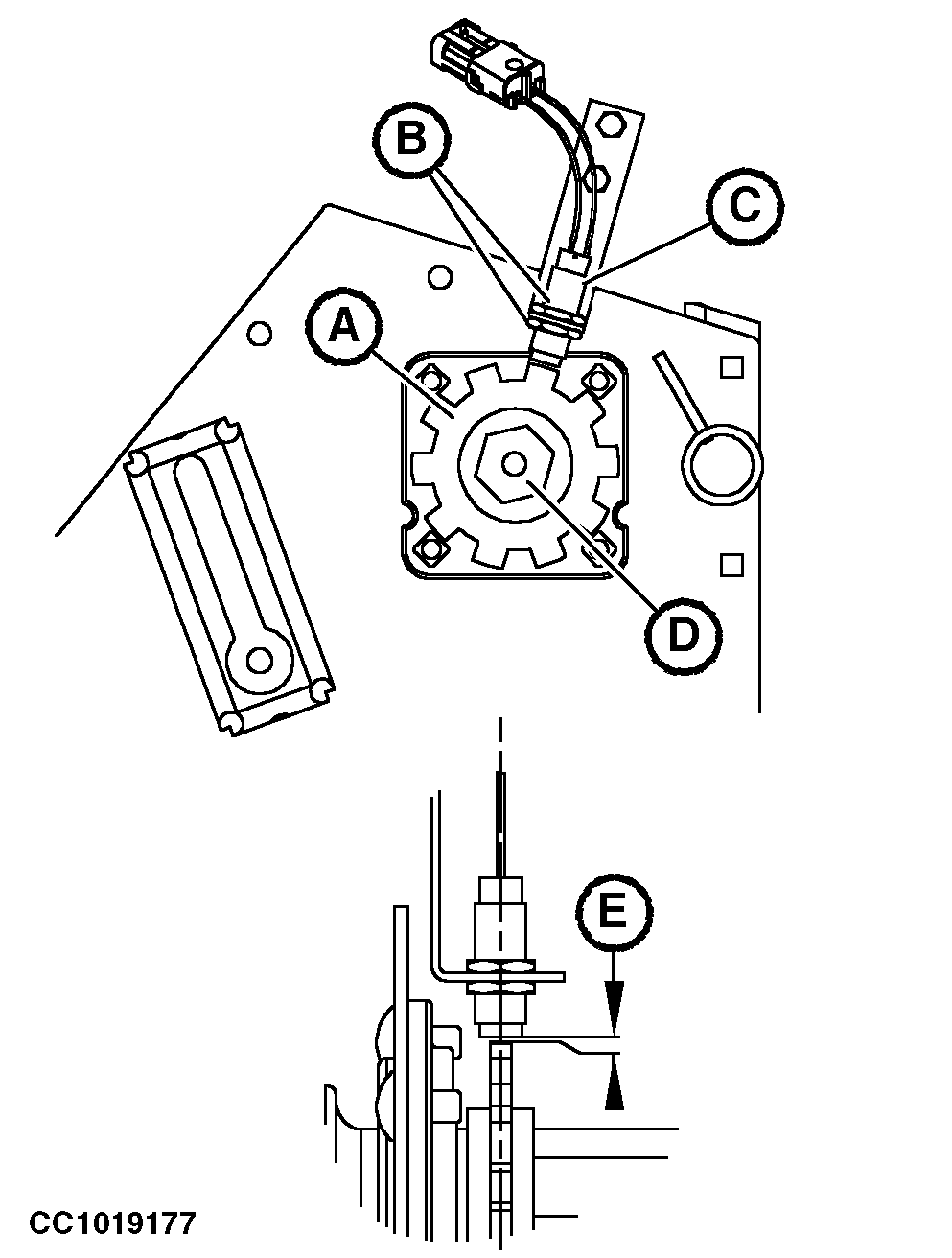

Position a spanner on gear case output shaft and rotate baler by hand so that the gear (A) is in position shown.

Loosen lock nuts (B) and slide the sensor (C) to obtain a distance (E) between sensor (C) and gear (A) to 2±0.5 mm (0.08±0.02 in.).

Check that center line of sensor (C) is aligned with center line of gear (A) as shown in the bottom illustration.

A-Gear
B-Lock nuts
C-Sensor
D-Lower drive roll NR2
E-2±0.5 mm (0.08±0.02 in.)
