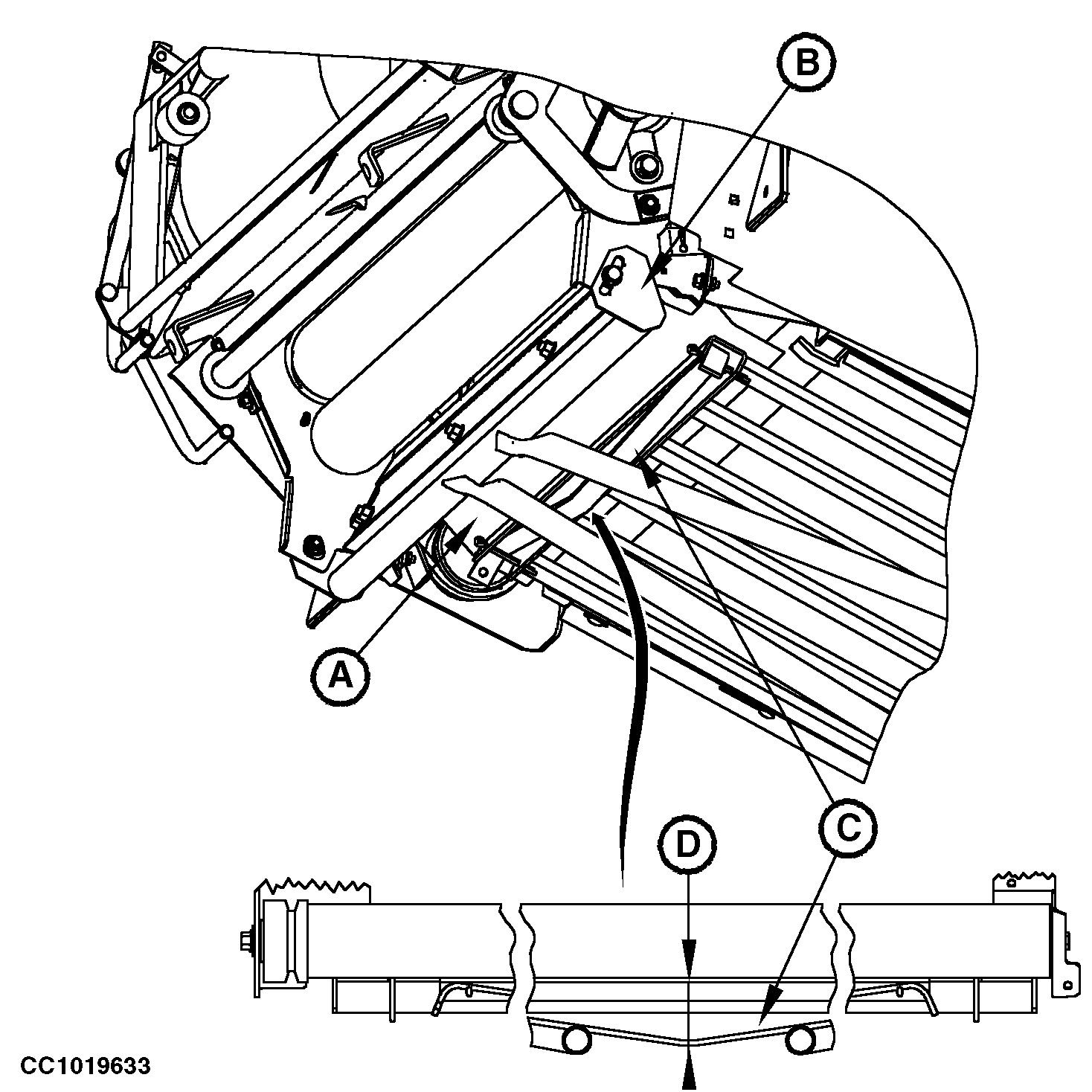

A-Net guide panel

B-Net guide bracket

C-Leaf spring

D-45 to 50 mm (1.77 to 1.97 in.)

IMPORTANT: Prior to carry out this test, make sure that test 1 to 8 results are "OK". Proceed to the relevant tests described in this Section.

Check lower net guide function each time belt tracking adjustment has been performed or lower net guide has been removed. Proceed as follows:

Check that lower net guide panel (A) is all along its width in contact with baler belts at the level of lower rear gate roll NR 8.

NOTE: Keep lower net guide panel (A) as clean as possible and smooth.

Adjust lower net guide panel brackets (B) position to obtain a distance (D) between 45 to 50 mm (1.77 to 1.97 in.).

NOTE: Check that leaf spring pushes back the net guide in contact with the belts after having pulled it down.

OUCC006,000039E -19-06APR01-1/2

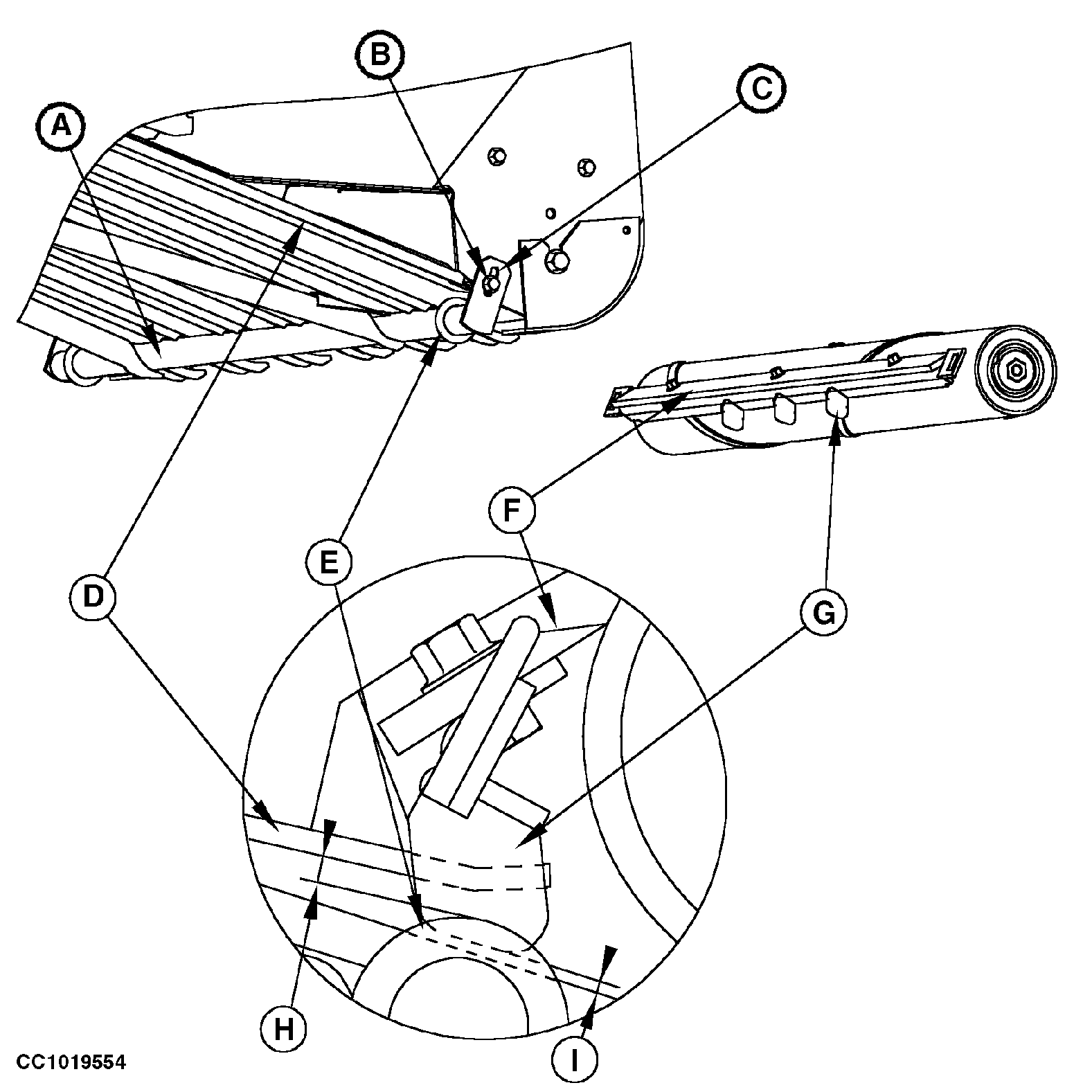

A-Net guide
B-Net guide fixing screw
C-Oblong hole

D-Deflector
E-Washer

F-Scraper
G-Belt guide

H-2 to 3 mm (0.08 to 0.12 in.)
I-2 to 3 mm (0.08 to 0.12 in.)

Check that distance (I) between belt guide (G) and lower net guide (A) is from 2 to 3 mm (0.08 to 0.12 in.) and that distance (H) between washer (E) and deflector (D) is from 2 to 3 mm (0.08 to 0.12 in.).

Readjust scraper (F). See "Adjusting Lower Gate Roll (NR 9) Scraper" in "Operating the Baler-General Purpose" section.

OUCC006,000039E -19-06APR01-2/2
