OMCC58341: 572, 582 and 592 Round Balers, Block File: OUCC006_00003DA_19

A-1.41 m (4 ft 7 in.) pickup

B-1.81 m (5 ft 11 in.) pickup

C-2.00 m (6 ft 7 in.) hiflow pickup

D-2.20 m (7 ft 3 in.) hiflow pickup

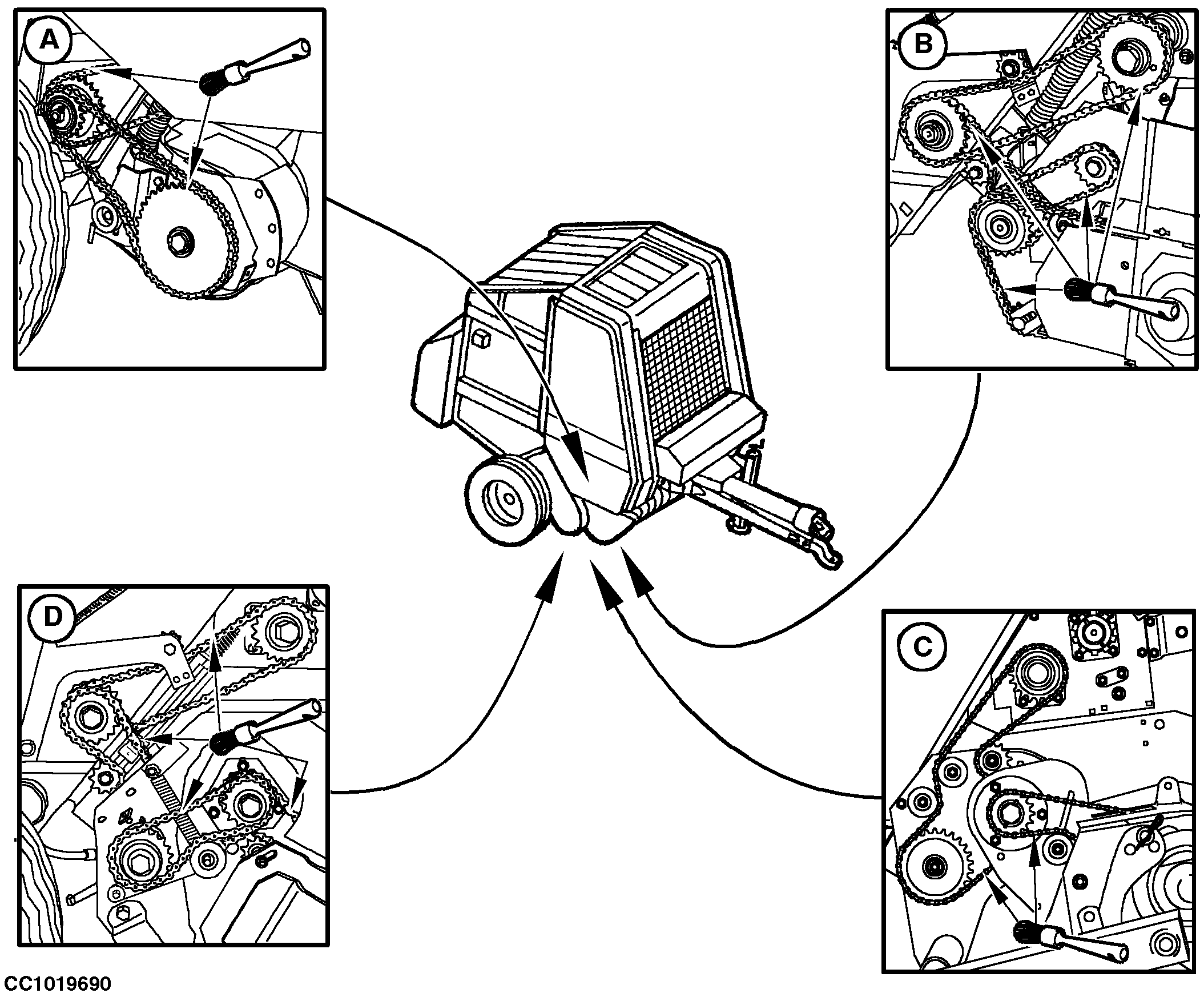

Right Hand Side

Lubricate with John Deere GREASE-GARD.

OUCC006,00003DA -19-10MAY01-1/2

B-1.81 m (5 ft 11 in.) pickup

C-2.00 m (6 ft 7 in.) hiflow pickup

D-2.20 m (7 ft 3 in.) hiflow pickup

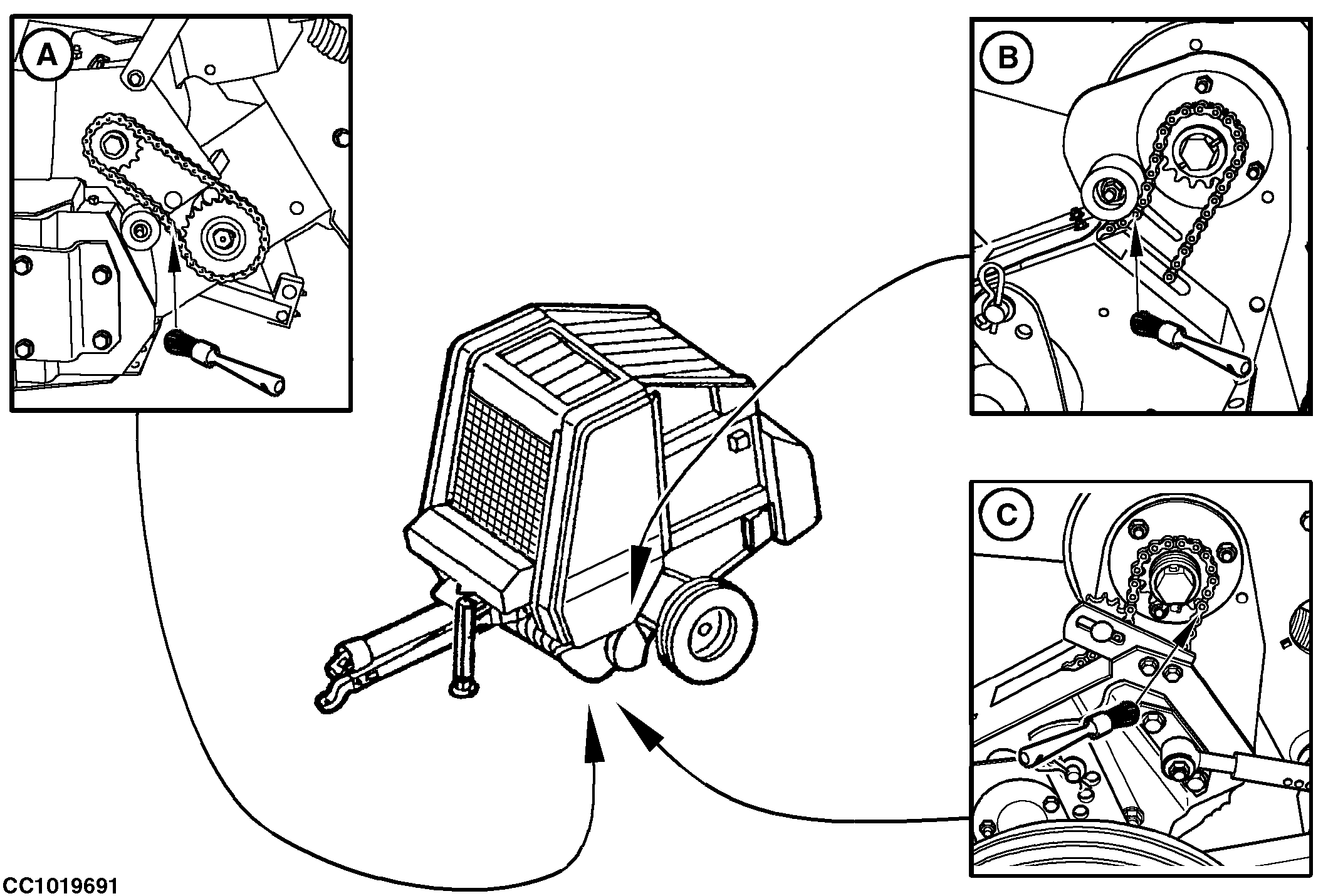

Left Hand Side

Lubricate with John Deere GREASE-GARD.

OUCC006,00003DA -19-10MAY01-2/2
