Every 30 Hours

CC009635

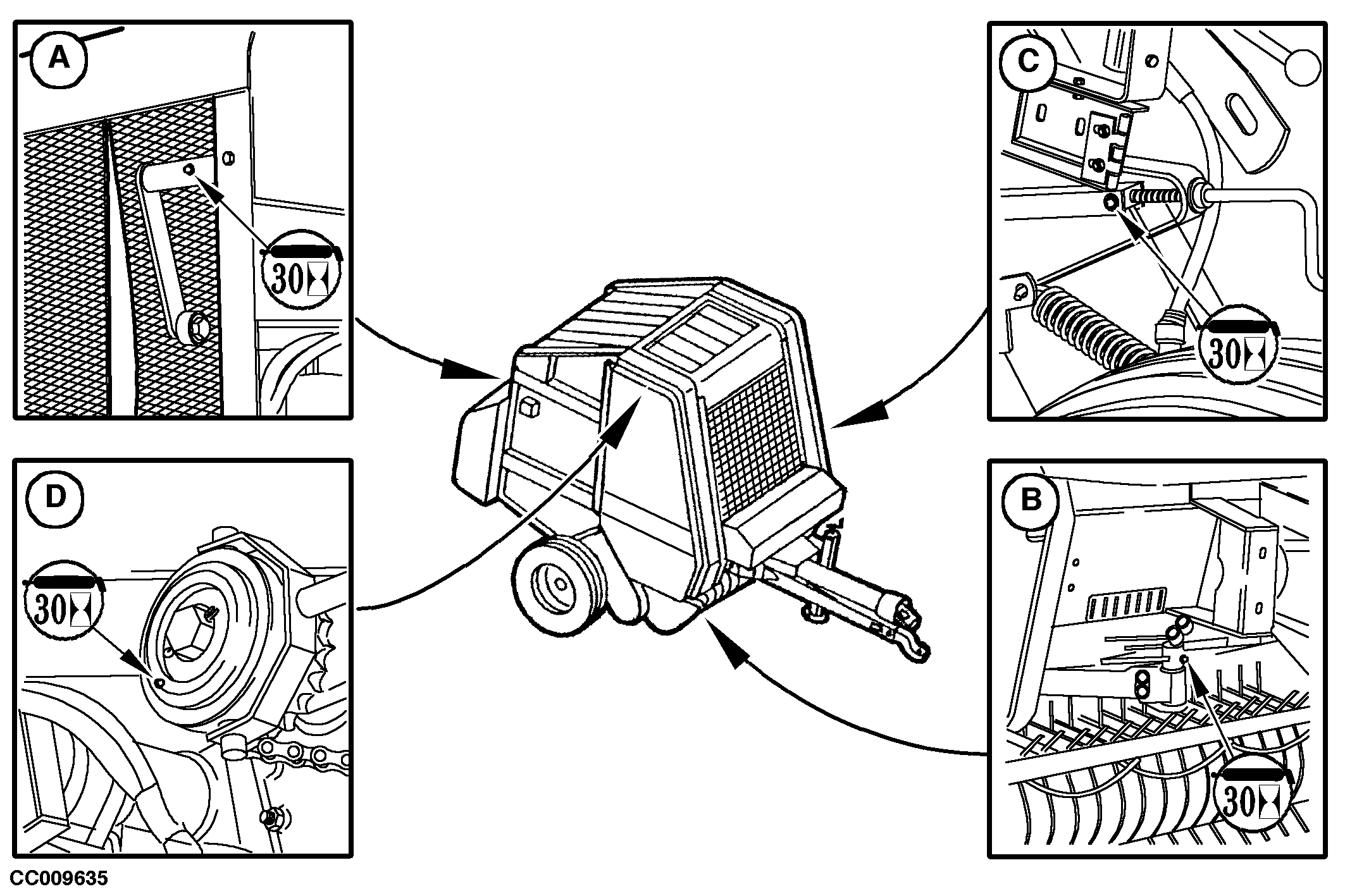

A-Bale shape sender arm


B-Twine arm hub


C-Pickup lift crank


D-Declutchable upper roll drive hub

IMPORTANT: Do not use the baler wheel as a support to lubricate the declutchable upper roll drive hub grease fitting. Always use a ladder or step ladder to gain access to this grease fitting.

Lubricate with John Deere GREASE-GARD.

OUCC006,00003DB -19-10MAY01-1/4

CC1018325

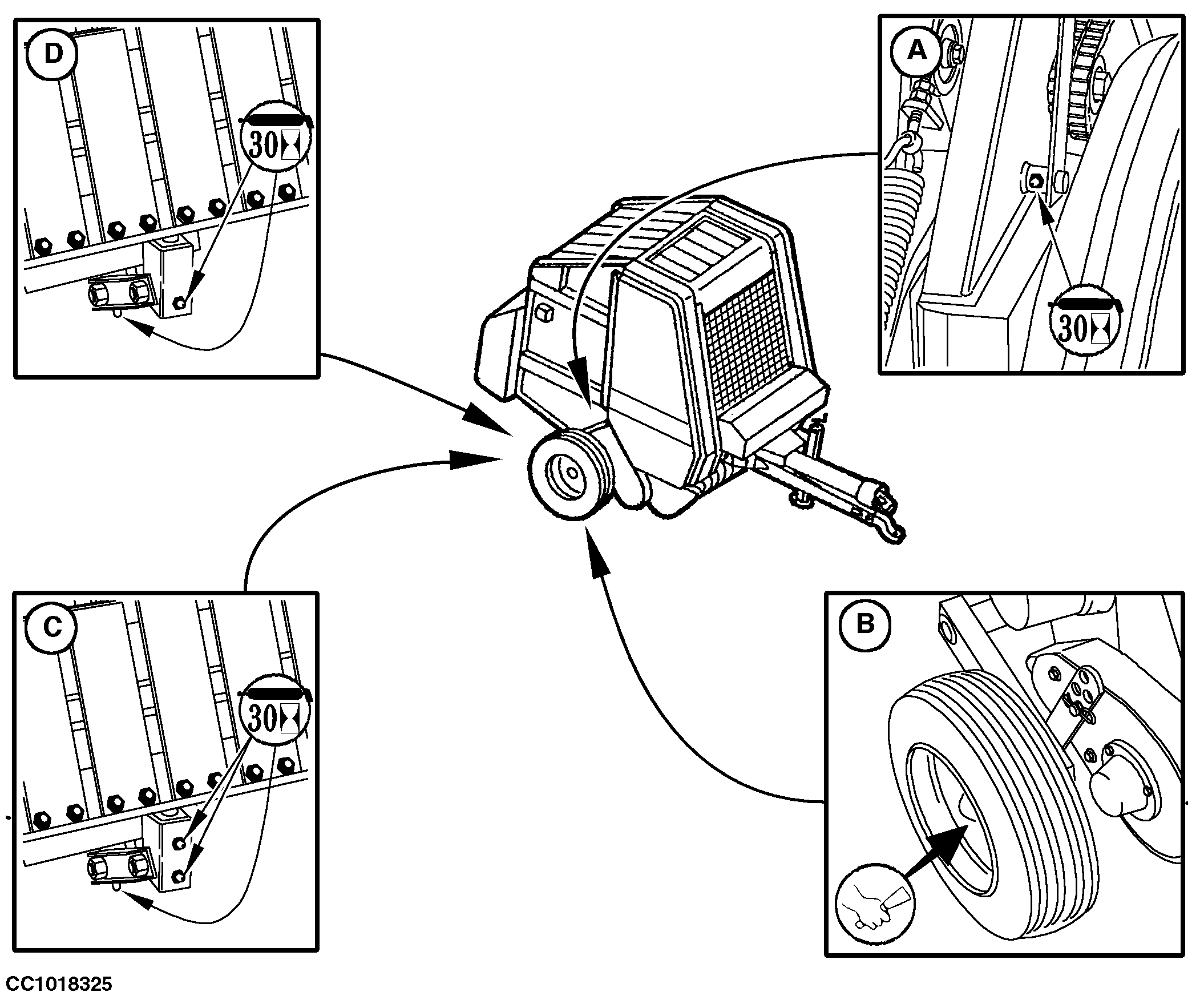

A-Pickup chain idler


B-Pickup gauge wheel


C-1.81 m (5 ft 11 in.) pickup picker link


D-2.00 m (6 ft 7 in.) and 2.20 m (7 ft 3 in.) hiflow pickup picker link

Lubricate with John Deere GREASE-GARD.

OUCC006,00003DB -19-10MAY01-2/4

CC1019115

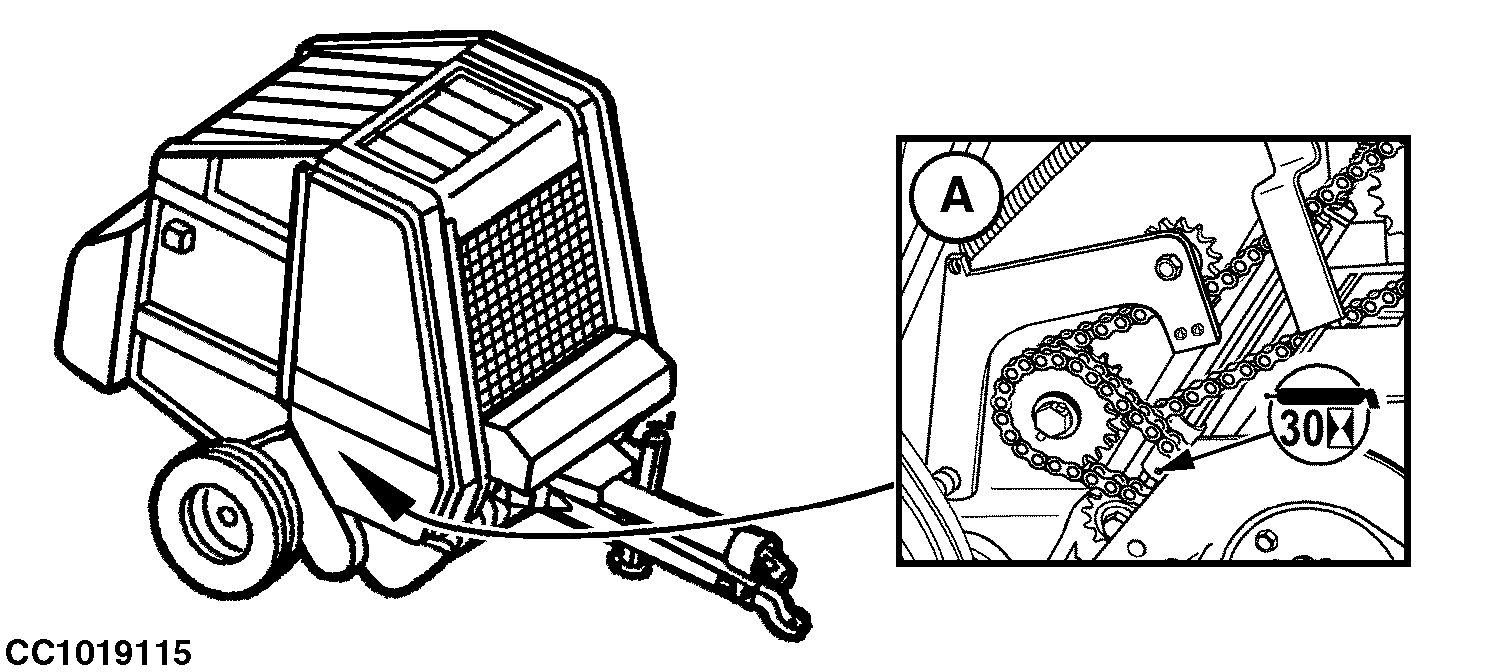

A-Tensioner of staggered packer drive chain (2.20 m; 7 ft 3 in. pickup)



Lubricate with John Deere GREASE-GARD.

OUCC006,00003DB -19-10MAY01-3/4

CC1018338

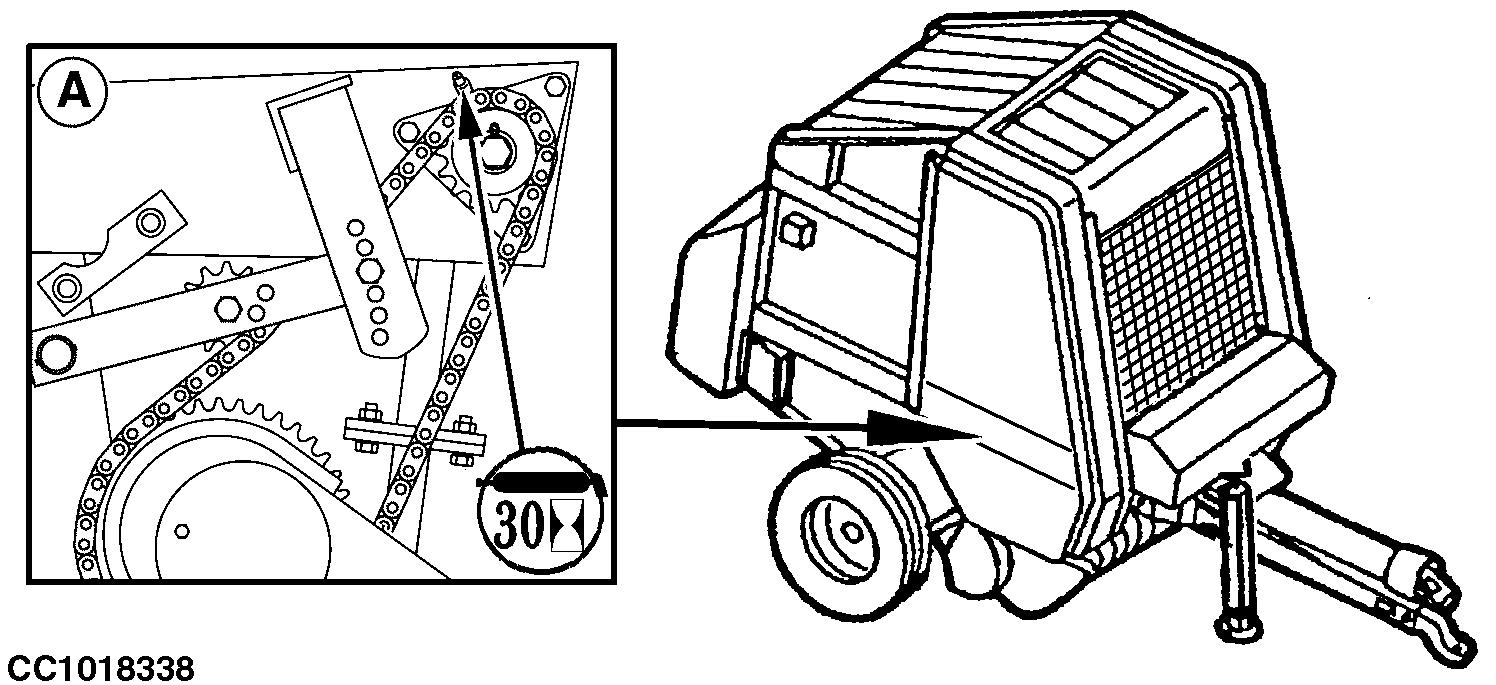

A-Bearing of precutter drive sprocket



Lubricate with John Deere GREASE-GARD.

OUCC006,00003DB -19-10MAY01-4/4
