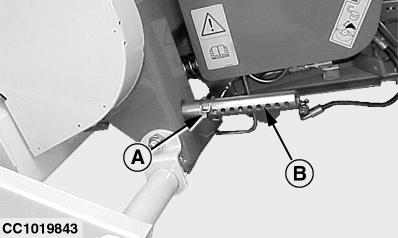

Adjusting 2.00 m (6 ft 7 in.) Precutter Pickup Height (Pickup with Downstop)Act on selective control valve lever to fully raise the pickup. Remove quick lock pin (A) then engage it through one hole of the downstop and the rod inside the downstop tube (B). Act on selective control valve lever to fully lower the pickup. Check pickup height. Repeat above procedure until the desired height is obtained. |
|
OUCC006,0000409 -19-05JUN01-1/1 |
