Channel 028: Fine Tuning Bale Size

Depending on crop baled, it can occur that the measured bale diameter does not correspond to the desired diameter adjusted on monitor.

In "CH028", the monitor can be fine tuned to recover the real desired bale diameter.

Make a bale with a diameter of:

• 110 cm (43 in.) for 572 baler
• 130 cm (51 in.) for 582 and 592 balers

Measure the actual bale diameter.

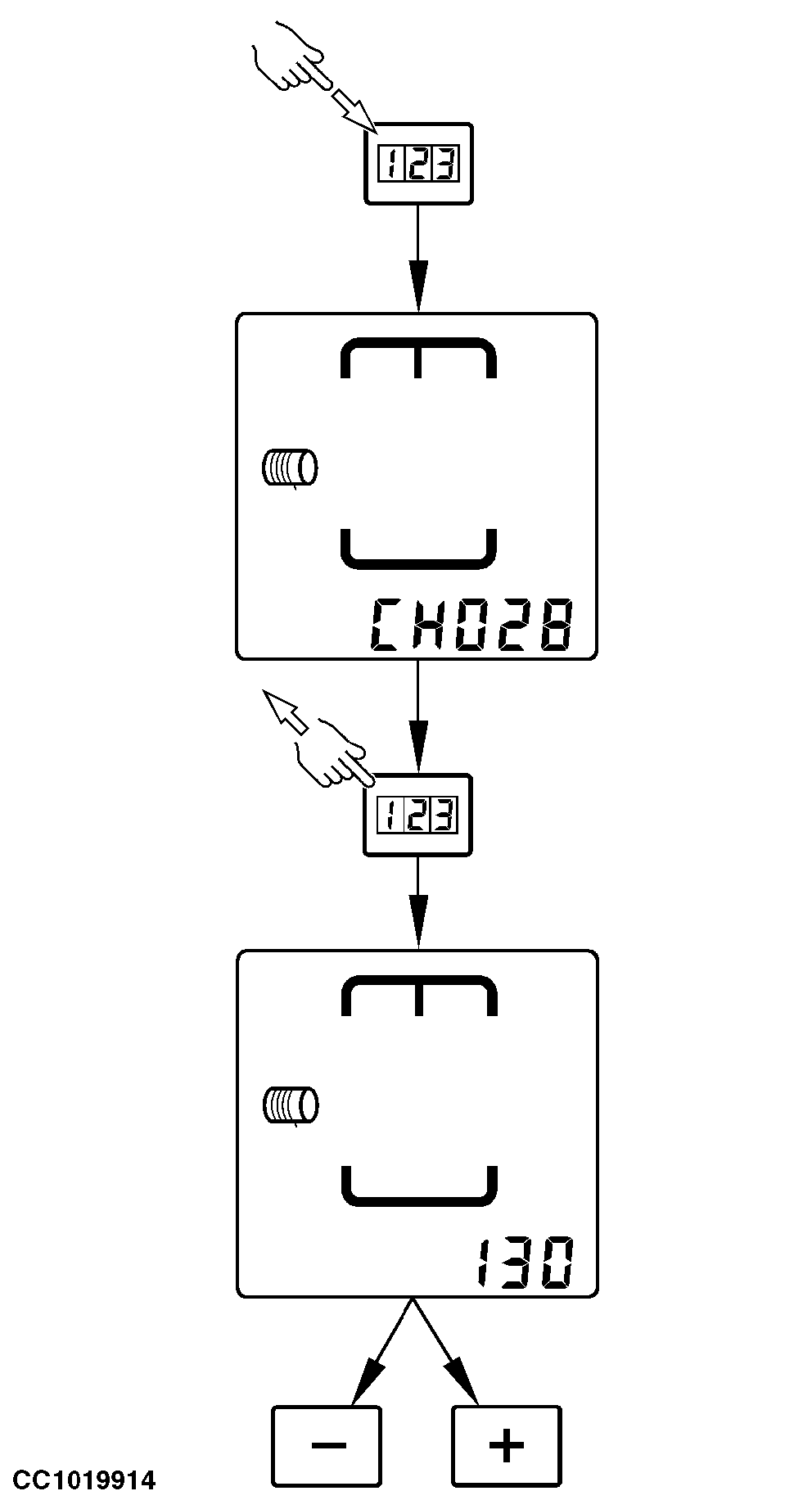

Select the channel 28.

In "CH028", press "PLUS" or "MINUS" key to display the actual bale diameter measured.

The last bale diameter entered is stored.

NOTE: To check actual bale diameter, measure bale horizontally and vertically on both ends. Add the four measurements together and divide by four to determine average bale diameter.
