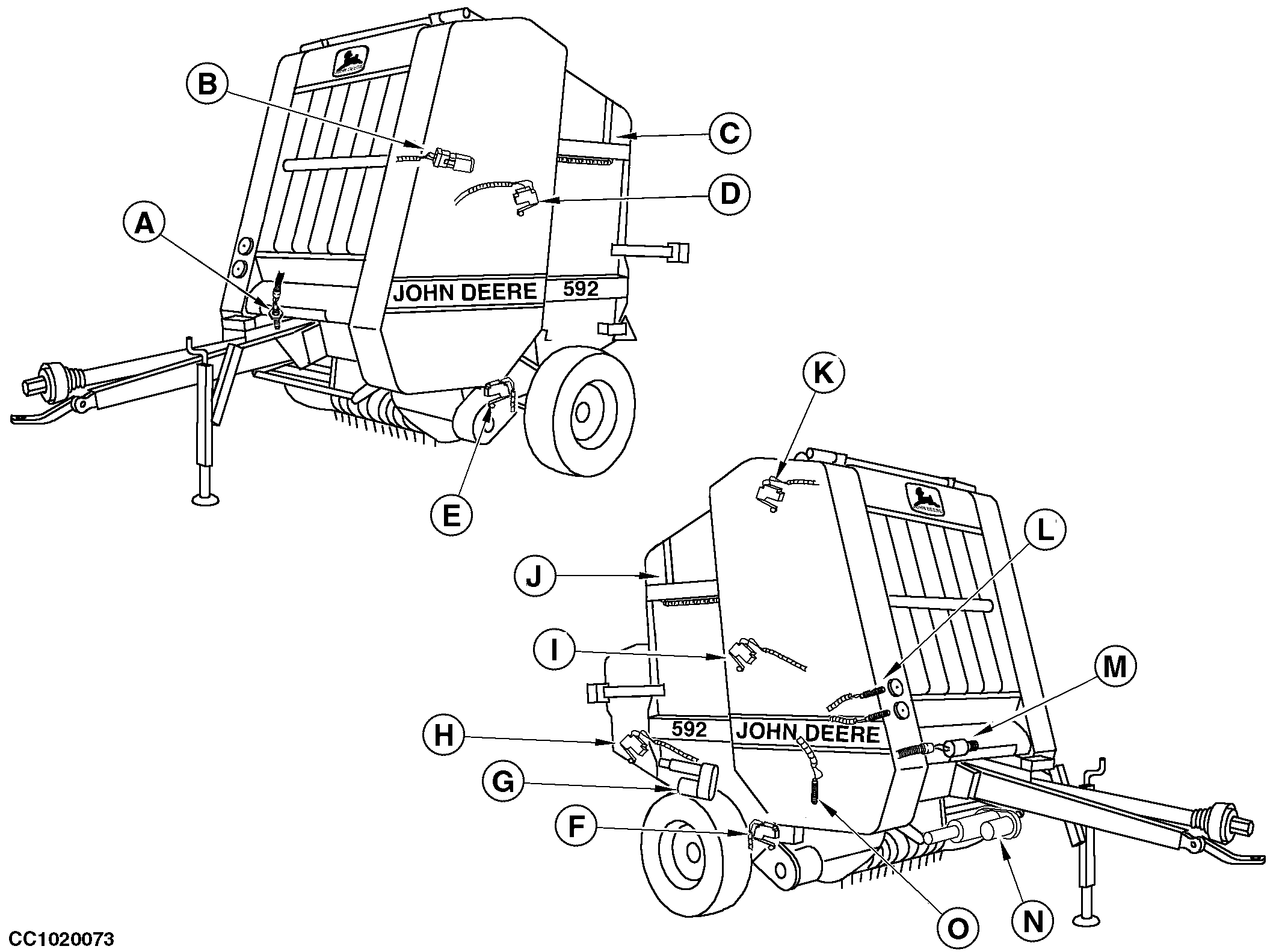

A-Precutter reverse sensor (Precutter only)
B-Bale size potentiometer
C-Left bale shape potentiometer
|
D-Left gate latch switch
E-Left knife sensor (Precutter only)
F-Right knife sensor (Precutter only)
G-Net actuator1
|
H-Net cut switch1
I-Right gate latch switch
J-Right bale shape potentiometer
K-Bale oversize switch
L-Twine pulley sensors (Precutter only)
|
M-Soft core valve1
N-Twine actuator1
O-Lower drive roll rpm sensor
|
