Adjusting Starter Roll (NR 1) Scraper (Baler with Precutter Device)

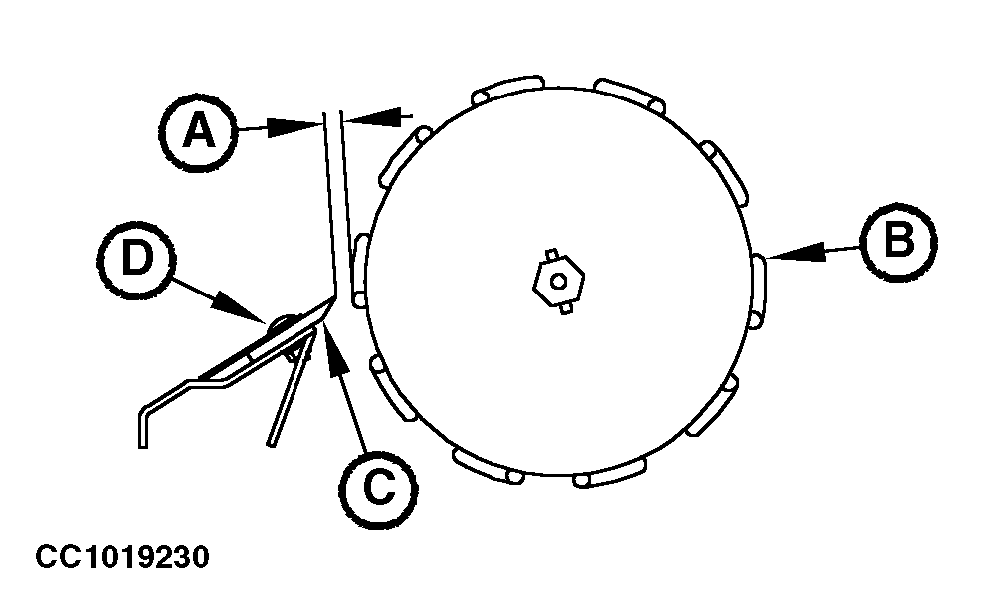

190 mm Starter Roll

Space (A) between starter roll (B) and scraper (C) should be 2 mm (0.08 in.) maximum.

Adjust scraper (C) as follows:

Loosen screws (D) then adjust space (A).

Manually rotate baler to check distance at all bars.

Tighten screws (D).

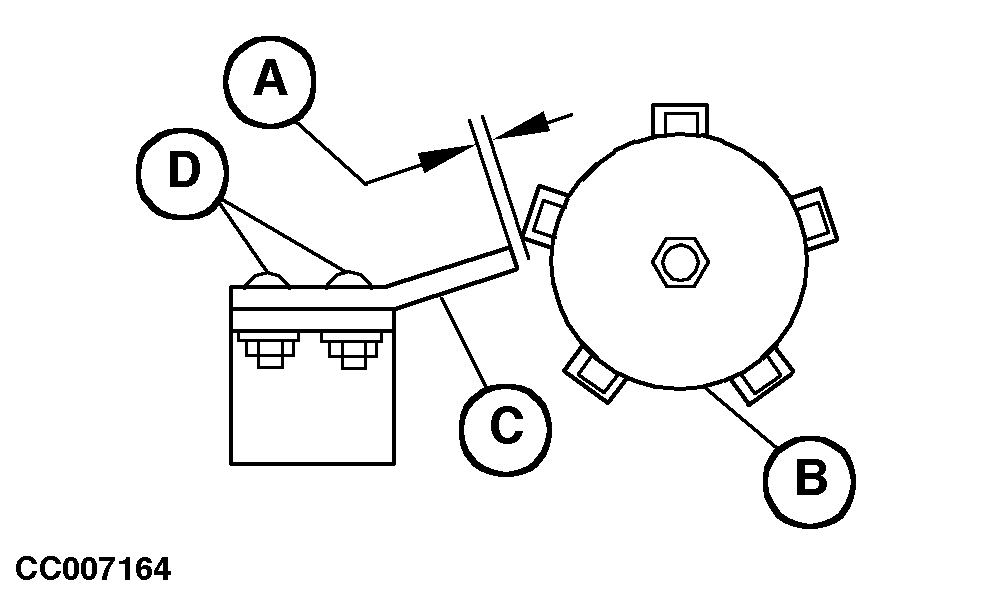

330 mm Starter Roll

Adjust scraper (C) as close as possible to bottom roll (B), leaving enough space (A) to avoid any contact with starter roll.

Adjust scraper (C) as follows:

Loosen screws (D) then adjust space (A).

Manually rotate baler to check distance at all bars.

Tighten screws (D) to 140 N·m (103 lb-ft).

A-Space
B-Starter roll
C-Scraper
D-Mounting screws

OUCC006,0000436 -19-11JUL01-1/1
