Channel 012: Test of Net Cut Switch

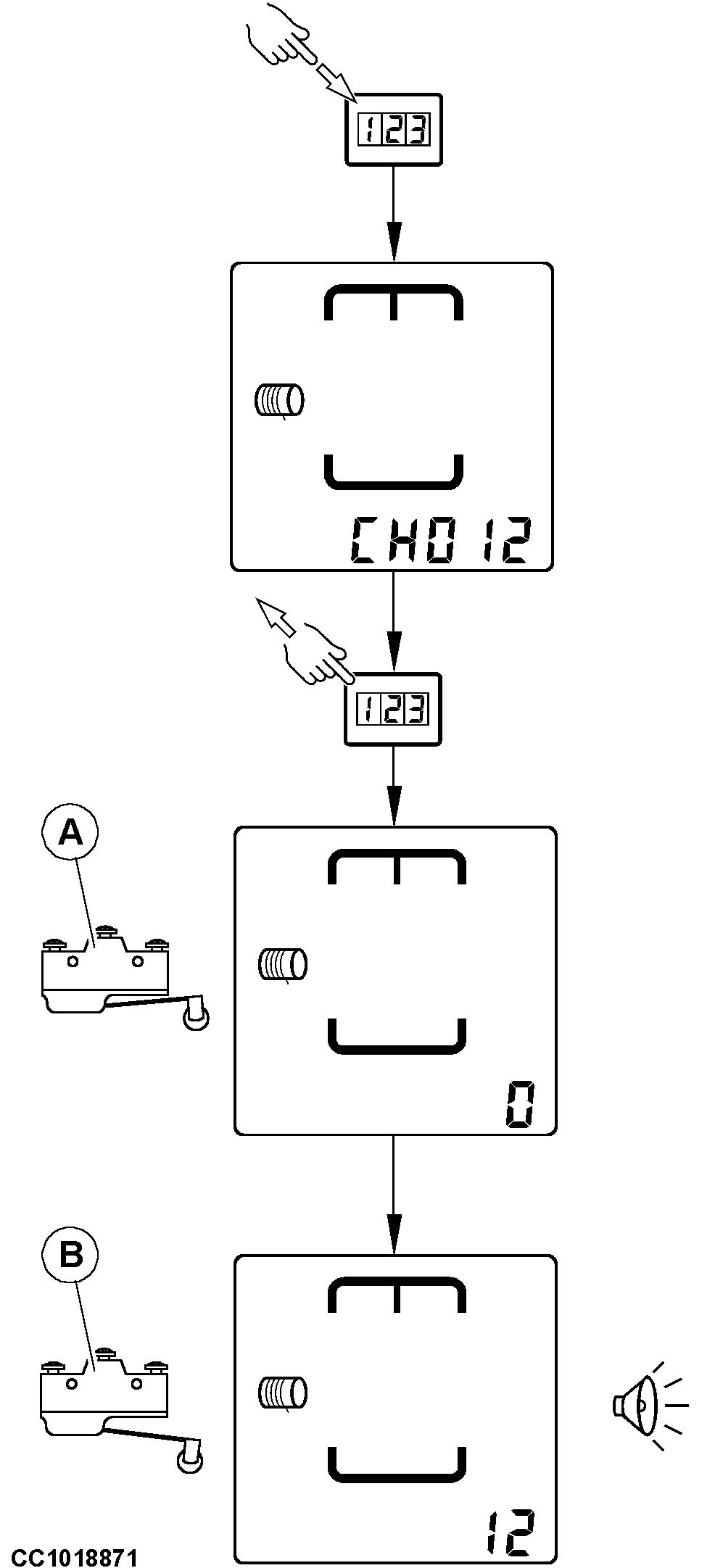

"CH012" allows to test the net cut switch.

The monitor displays "0" when the switch is closed (A) and "12" with a continuous beep when the switch is open (B).

If this test is not OK, see your John Deere dealer.

NOTE: See "Adjusting Net Cut Switch" in "Service" section to check the switch adjustment.

A-Net cut switch closed
B-Net cut switch opened

OUCC006,0000463 -19-22AUG01-1/1
