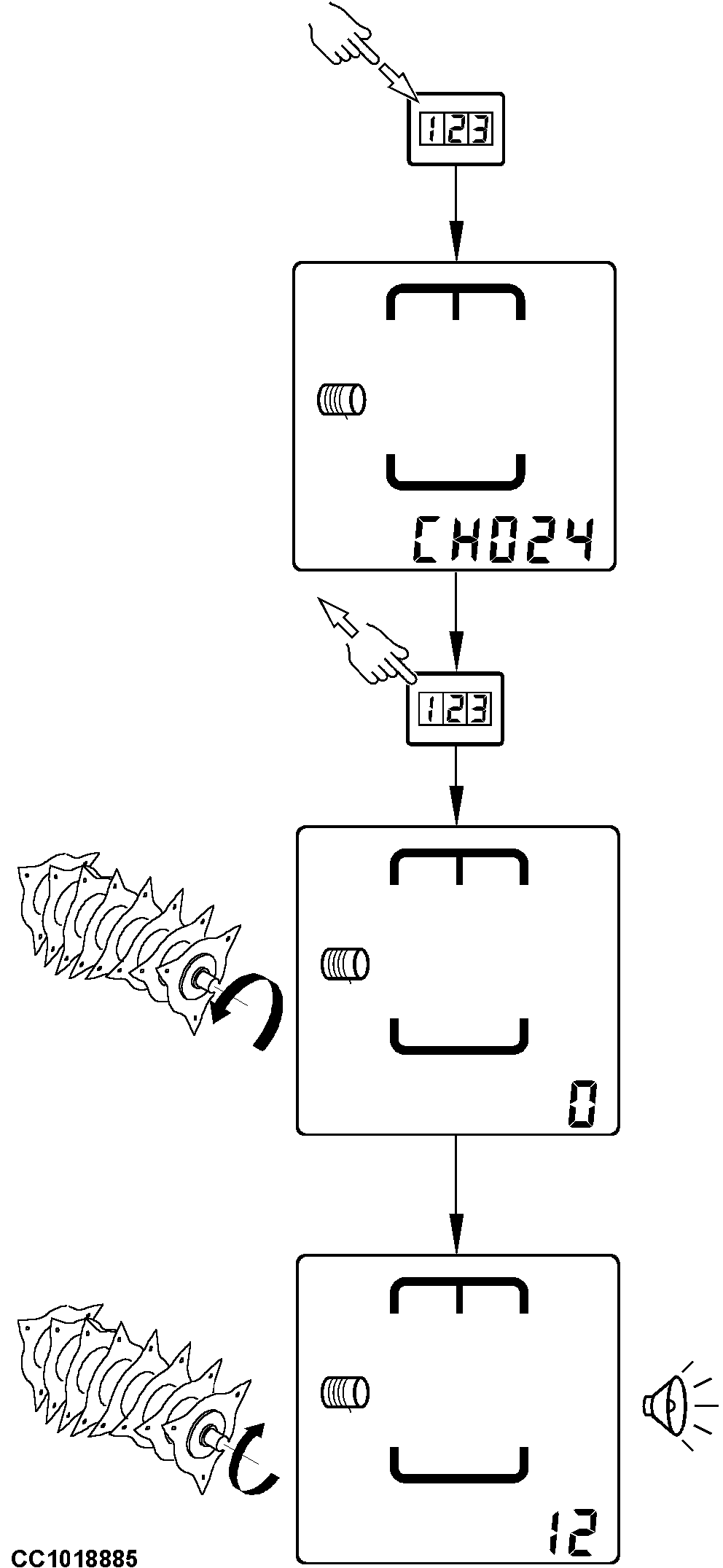

Channel 024: Test of Precutter Reverse Sensor

"CH024" allows to test the precutter reverse sensor.

The monitor displays "0" when the gear box is in normal operating mode.

The monitor displays "12" with a continuous beep when the gear box is in reverse mode.

If this test is not OK, check the sensor adjustment. See "Adjusting Precutter Reverse Sensor" in "Service" section or your John Deere dealer.

OUCC006,0000564 -19-13NOV01-1/1
