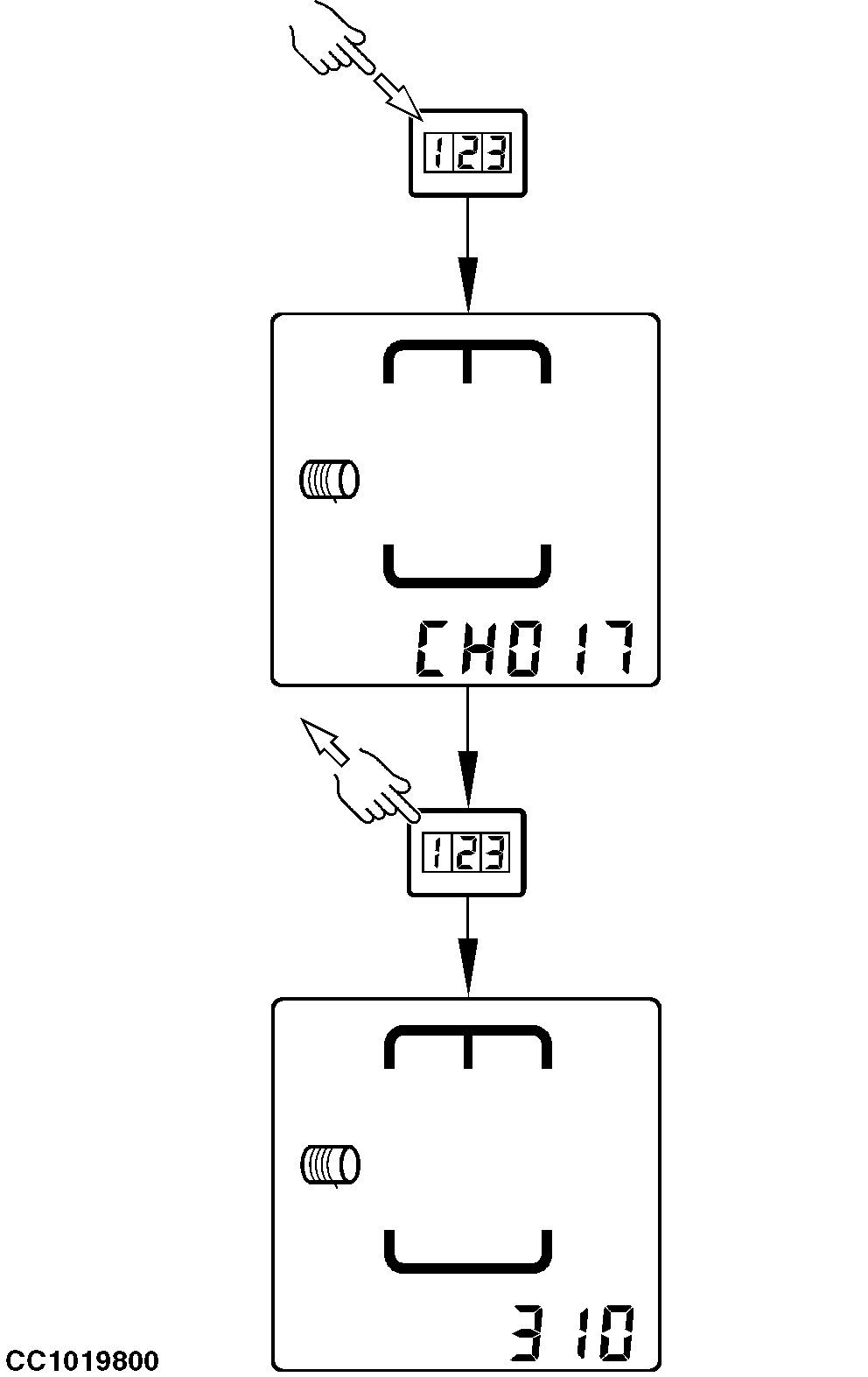

Channel 017: Speed of Lower Drive Roll (NR 2)

"CH017" allows to check the speed of lower drive roll (NR 2). When the baler is running with a 540 rpm PTO speed, the speed of lower drive roll will be 310 rpm.

If this test is not OK, check the lower drive roll sensor adjustment. See "Adjusting Lower Drive Roll Sensor" in "Service" section or your John Deere dealer.

OUCC006,00006B0 -19-22MAY02-1/1
