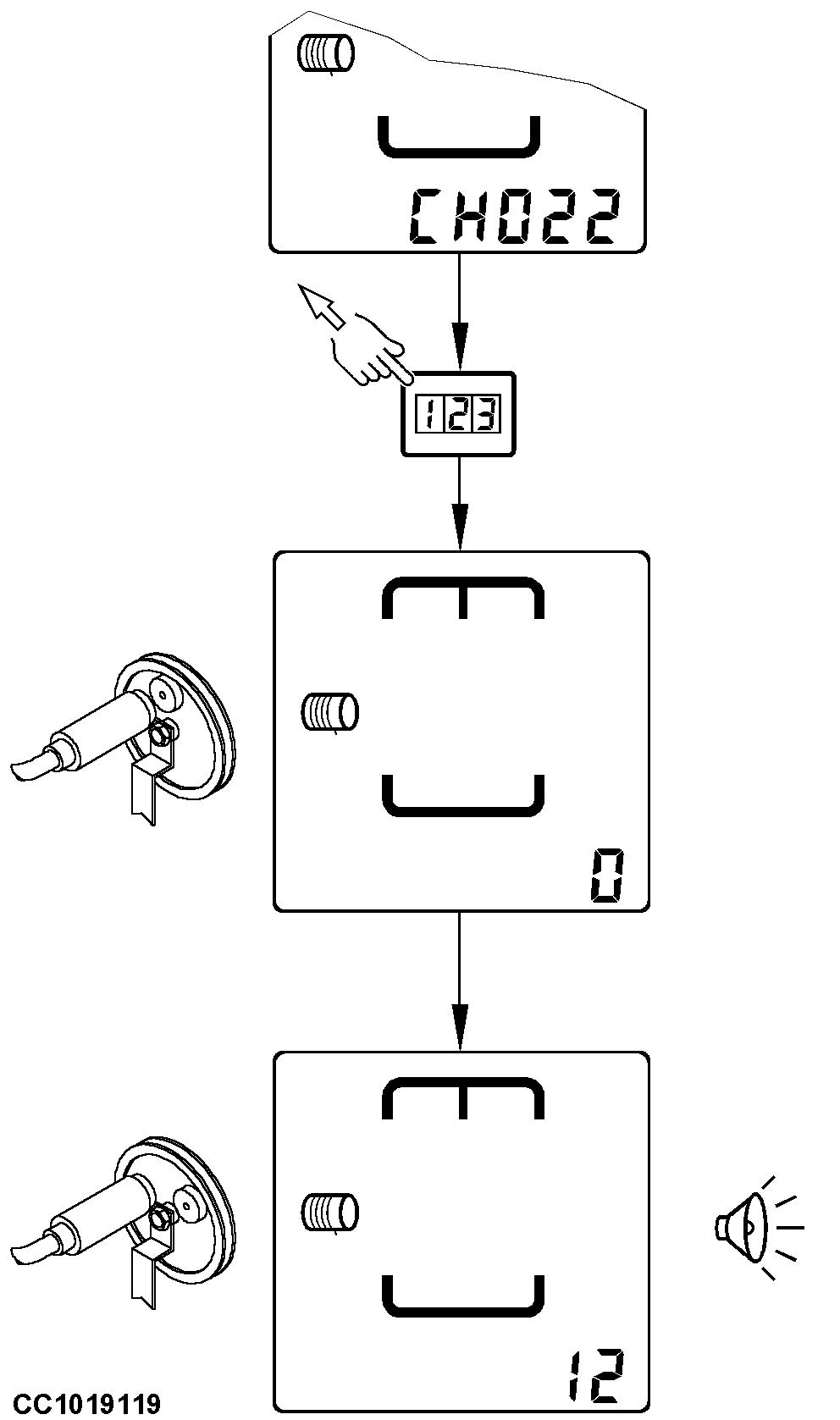

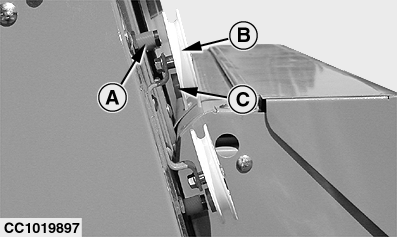

Channel 022: Test of Twine Pulley Sensor 1"CH022" allows to test the twine pulley sensor 1. The pulley sensor number 1 (A) informs the monitor about pulley rotation which confirms that the twine has been caught by the bale during the tying cycle. Rotate pulley (B) by hand. The monitor displays "0" when the sensor (A) is aligned with the magnet (C). The monitor displays "12" with a continuous beep when the sensor (A) is not aligned with the magnet (C). NOTE: When the channel 22 is selected, the speed of pulley 1 is displayed as number of turns per second. If this test is not OK, check the sensor adjustment. See "Adjusting Pulley Sensor" in "Service" section or your John Deere dealer.
|
|
