Channel 027: Recording Low Position of Belt Tension Arm

"CH027" allows to record the low position of belt tension arm.

Move belt tension arm to its lowest position with selective control valve lever

Engage PTO a few seconds to remove belt slack. Shut off tractor engine.

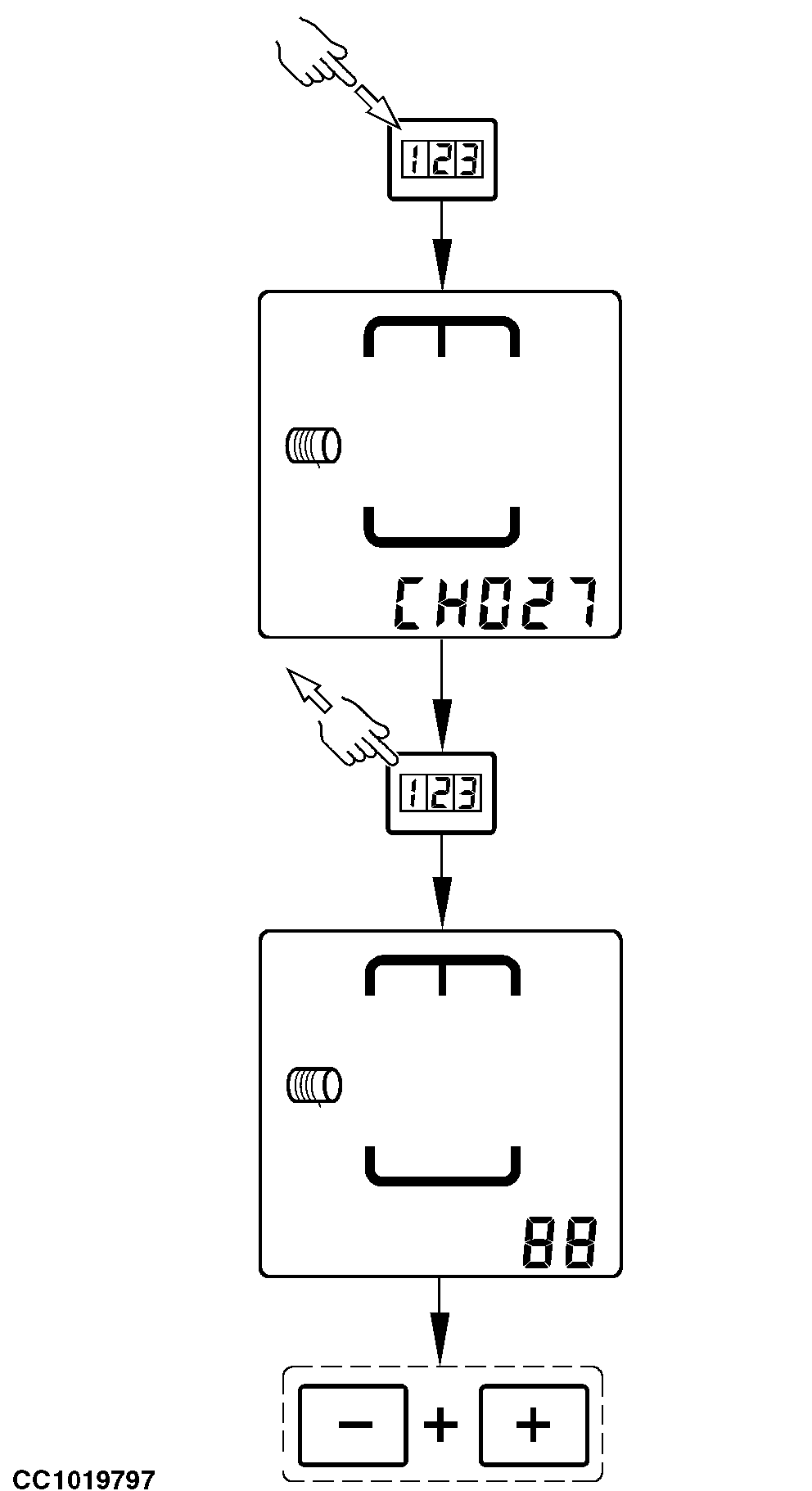

Select the channel 27.

In "CH027", press simultaneously "PLUS" and "MINUS" keys to record the value of potentiometer corresponding to the low position of belt tension arm.

OUCC006,00006B5 -19-22MAY02-1/1
