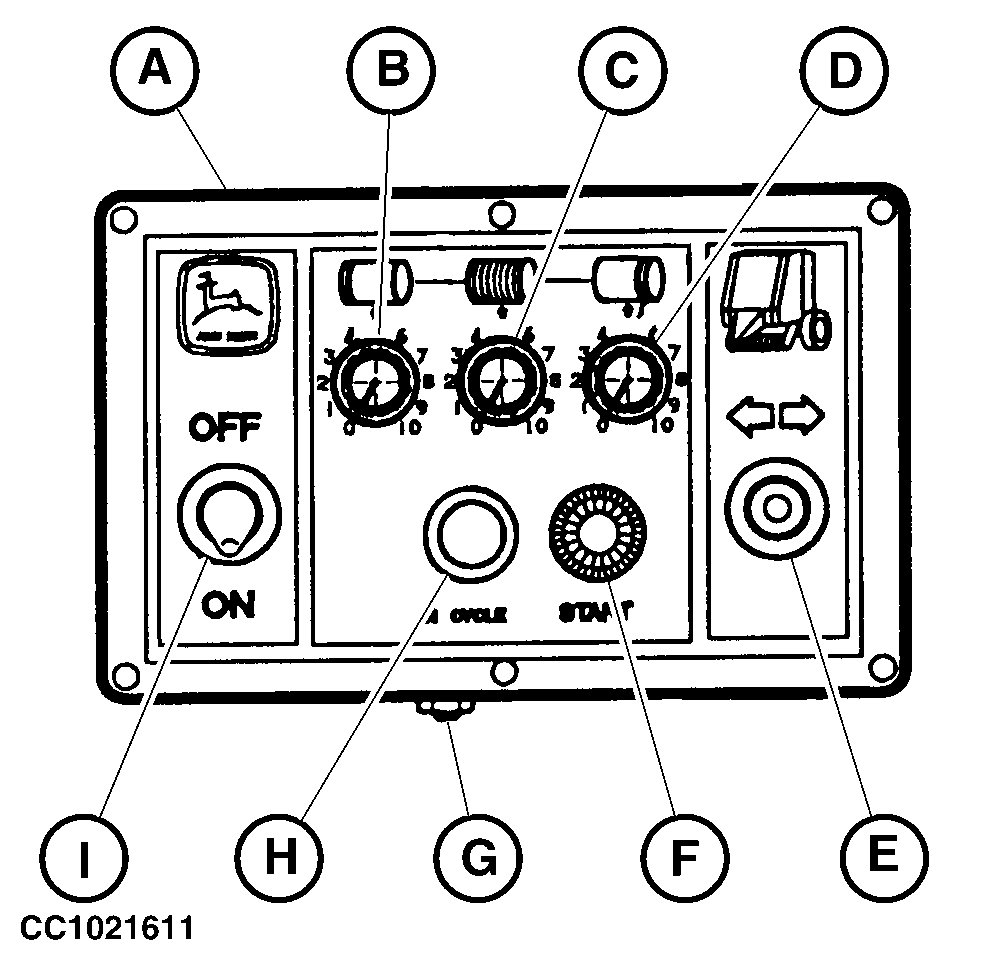

ELC Monitor Description
ELC monitor allows to control twine tying.
A-Monitor
B-Right-hand twine distribution potentiometer
C-Middle twine distribution potentiometer
D-Re-extension time potentiometer
E-Manual control switch
F-"START" button
G-Adjustable screw
H-"IN CYCLE" light
I-"ON/OFF" switch
|
