Adjusting Bale Size

Close gate.

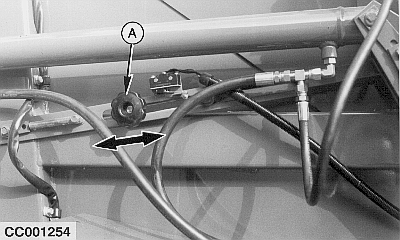

For maximum bale size, loosen knob (A) and move bolt assembly rearward to end of slot. Tighten knob (A).

For minimum bale size, loosen knob (A) and move bolt assembly forward to end of slot. Tighten knob (A).

A-Knob

OUCC006,00006EC -19-18JUN02-1/1
